一、集群环境准备

1.1 主机规划

主机IP地址

主机名

主机配置

主机角色

软件列表

192.168.198.144

k8s-master1

2C4G

master

kube-apiserver、kube-controller-manager、kube-scheduler、etcd、kubectl

192.168.198.145

k8s-master2

2C4G

master

kube-apiserver、kube-controller-manager、kube-scheduler、etcd、kubectl

192.168.198.146

k8s-master3

2C4G

master

kube-apiserver、kube-controller-manager、kube-scheduler、etcd、kubectl

192.168.198.147

k8s-node1

2C4G

worker

kubelet、kube-proxy、docker、haproxy、keepalive

192.168.198.148

k8s-node2

2C4G

worker

kubelet、kube-proxy、docker、haproxy、keepalive

192.168.198.100

/

/

VIP(虚拟IP)

1.2 软件版本

软件名称

版本

备注

CentOS7

kernel版本:5.4

kubernetes

v1.28.0

etcd

v3.5.11

最新版本

calico

v3.26.4

coredns

v1.10.1

docker

24.0.7

haproxy

5.18

YUM源默认

keepalived

3.5

YUM源默认

1.3 网络分配

网络名称

网段

备注

Node网络

192.168.198.0/24

Service网络

10.96.0.0/16

Pod网络

10.244.0.0/16

二、集群部署

2.1主机准备

2.1.1 主机名设置

hostnamectl set-hostname xxx

2.1.2 主机与IP地址解析

cat >> /etc/hosts << EOF
192.168.198.144 k8s-master1
192.168.198.145 k8s-master2
192.168.198.146 k8s-master3
192.168.198.147 k8s-node1
192.168.198.148 k8s-node2
EOF

2.1.3 主机安全设置

2.1.3.1 关闭防火墙

systemctl stop firewalld
systemctl disable firewalld
firewall-cmd --state

2.1.3.2 关闭selinux

setenforce 0
sed -ri 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
sestatus

2.1.4 交换分区设置

swapoff -a
sed -ri 's/.*swap.*/#&/' /etc/fstab
echo "vm.swappiness=0" >> /etc/sysctl.conf
sysctl -p

2.1.5 主机系统时间同步

安装软件
yum -y install ntpdate
​
制定时间同步计划任务
crontab -e
0 */1 * * * ntpdate time1.aliyun.com

2.1.7 ipvs管理工具安装及模块加载

yum -y install ipvsadm ipset sysstat conntrack libseccomp
#配置ipvasdm模块加载方式
#添加需要加载的模块
cat > /etc/sysconfig/modules/ipvs.modules << EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack
EOF
#授权,运行,检查是否加载
chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack

2.1.9 Linux内核升级

至少升级到5.4版本

yum -y install perl
#导入elrepo gpg key
rpm --import https://www.elrepo.org/RPM-GPG-KEY-elrepo.org
#安装elrepo yum源仓库
yum -y install https://www.elrepo.org/elrepo-release-7.0-4.el7.elrepo.noarch.rpm
#安装kernel-lt 版本,ml为最新稳定版本,lt为长期维护版本
 yum  --enablerepo="elrepo-kernel"  -y install kernel-lt.x86_64
#设置grub2默认引导为0,开机启动
grub2-set-default 0
#重新生成grub2引导文件
grub2-mkconfig -o /boot/grub2/grub.cfg
​
[root@k8s-node2 ~]# grub2-mkconfig -o /boot/grub2/grub.cfg
Generating grub configuration file ...
Found linux image: /boot/vmlinuz-5.4.265-1.el7.elrepo.x86_64
Found initrd image: /boot/initramfs-5.4.265-1.el7.elrepo.x86_64.img
Found linux image: /boot/vmlinuz-3.10.0-1160.el7.x86_64
Found initrd image: /boot/initramfs-3.10.0-1160.el7.x86_64.img
Found linux image: /boot/vmlinuz-0-rescue-3ae18cd125514089a081168aac1529ca
Found initrd image: /boot/initramfs-0-rescue-3ae18cd125514089a081168aac1529ca.img
done
#所有节点配置完内核后,重启服务器,使升级的内核生效
reboot -h now
#验证是否升级成功
[root@k8s-master1 ~]# uname -r
5.4.265-1.el7.elrepo.x86_64

2.1.10 Linux内核优化

#添加网桥过滤及内核转发配置文件
cat  > /etc/sysctl.d/k8s.conf <<EOF
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
EOF
#加载br_netfilter模块
#临时加载模块
[root@k8s-master1 ~]# modprobe br_netfilter
#查看
[root@k8s-master1 ~]# sysctl  -p /etc/sysctl.d/k8s.conf
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
#永久性加载模块
cat > /etc/modules-load.d/containerd.conf << EOF
overlay
br_netfilter
EOF
#设置为开机启动
systemctl enable --now systemd-modules-load.service
#查看是否加载
lsmod | grep br_netfilter
​
[root@k8s-master1 ~]# lsmod | grep br_netfilter
br_netfilter           28672  0
 以上在所有节点操作

2.1.11 配置免密登录

在k8s-master1上操作即可,复制公钥到其他节点

[root@k8s-master1 ~]# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:40/tHc966yq63YQ8YK84udBoZMqkCeZB5XTj8QaSOZo root@k8s-master1
The key's randomart image is:
+---[RSA 2048]----+
|   +o=           |
|  +++ =          |
| .o... o         |
|.E    .          |
|.o . o  So       |
|+ * + o...+..    |
| + o + .o .=...  |
|    . .o.ooo+. +.|
|       oo++.oo==+|
+----[SHA256]-----+
ssh-copy-id root@k8s-master2
ssh-copy-id root@k8s-master3
ssh-copy-id root@k8s-node1
ssh-copy-id root@k8s-node2

2.2 负载均衡器准备

2.2.1 安装haproxy与keepalived

在ha部署的节点上运行,本次ha部署在k8s-node1,k8s-node2上

yum -y install haproxy keepalived

2.2.2 HAProxy配置

cat >/etc/haproxy/haproxy.cfg<<"EOF"
global
 maxconn 2000
 ulimit-n 16384
 log 127.0.0.1 local0 err
 stats timeout 30s
​
defaults
 log global
 mode http
 option httplog
 timeout connect 5000
 timeout client 50000
 timeout server 50000
 timeout http-request 15s
 timeout http-keep-alive 15s
​
frontend monitor-in
 bind *:33305
 mode http
 option httplog
 monitor-uri /monitor
​
frontend k8s-master
 bind 0.0.0.0:6443
 bind 127.0.0.1:6443
 mode tcp
 option tcplog
 tcp-request inspect-delay 5s
 default_backend k8s-master
​
backend k8s-master
 mode tcp
 option tcplog
 option tcp-check
 balance roundrobin
 default-server inter 10s downinter 5s rise 2 fall 2 slowstart 60s maxconn 250 maxqueue 256 weight 100
 server  k8s-master1  192.168.198.144:6443 check
 server  k8s-master2  192.168.198.145:6443 check
 server  k8s-master3  192.168.198.146:6443 check
EOF

2.2.3 KeepAlived

主从配置不一致,需要注意。

ha1:
​
cat >/etc/keepalived/keepalived.conf<<"EOF"
! Configuration File for keepalived
global_defs {
   router_id LVS_DEVEL
script_user root
   enable_script_security
}
vrrp_script chk_apiserver {
   script "/etc/keepalived/check_apiserver.sh"
   interval 5
   weight -5
   fall 2
rise 1
}
vrrp_instance VI_1 {
   state MASTER
   interface ens33
   mcast_src_ip 192.168.198.147
   virtual_router_id 51
   priority 100
   advert_int 2
   authentication {
       auth_type PASS
       auth_pass K8SHA_KA_AUTH
   }
   virtual_ipaddress {
       192.168.198.100
   }
   track_script {
      chk_apiserver
   }
}
EOF
ha2:
​
cat >/etc/keepalived/keepalived.conf<<"EOF"
! Configuration File for keepalived
global_defs {
   router_id LVS_DEVEL
script_user root
   enable_script_security
}
vrrp_script chk_apiserver {
   script "/etc/keepalived/check_apiserver.sh"
  interval 5
   weight -5
   fall 2
rise 1
}
vrrp_instance VI_1 {
   state BACKUP
   interface ens33
   mcast_src_ip 192.168.198.148
   virtual_router_id 51
   priority 99
   advert_int 2
   authentication {
       auth_type PASS
       auth_pass K8SHA_KA_AUTH
   }
   virtual_ipaddress {
       192.168.198.100
   }
   track_script {
      chk_apiserver
   }
}
EOF

2.2.4 健康检查脚本

ha1及ha2均要配置

cat > /etc/keepalived/check_apiserver.sh <<"EOF"
#!/bin/bash
err=0
for k in $(seq 1 3)
do
   check_code=$(pgrep haproxy)
   if [[ $check_code == "" ]]; then
       err=$(expr $err + 1)
       sleep 1
       continue
   else
       err=0
       break
   fi
done
​
if [[ $err != "0" ]]; then
   echo "systemctl stop keepalived"
   /usr/bin/systemctl stop keepalived
   exit 1
else
   exit 0
fi
EOF
chmod +x /etc/keepalived/check_apiserver.sh

2.2.5 启动服务并验证

systemctl daemon-reload
systemctl enable --now haproxy
systemctl enable --now keepalived
#查询地址,有vip
[root@k8s-node1 ~]# ip a s
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:09:7a:32 brd ff:ff:ff:ff:ff:ff
    inet 192.168.198.147/24 brd 192.168.198.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.198.100/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::6d0d:5af:b421:6829/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
    inet6 fe80::2dcd:beb6:b077:827d/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
[root@k8s-node1 ~]#

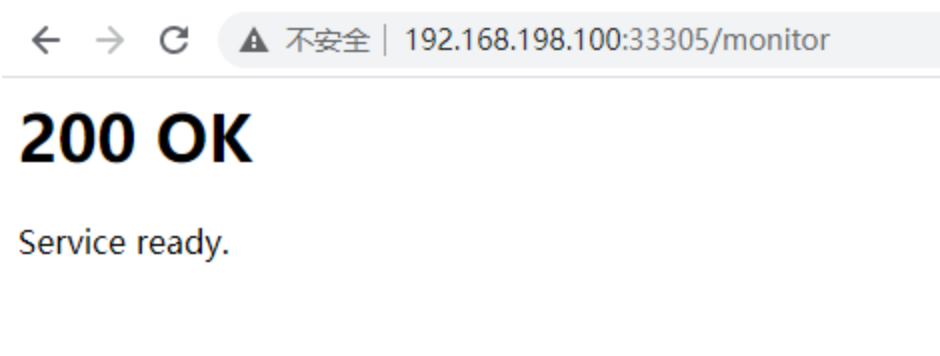

测试网页是否正常显示


2.4 部署ETCD集群

在k8s-master1上操作。

2.4.1 创建工作目录

mkdir -p /data/k8s-work

2.4.2 获取cfssl工具

https://github.com/cloudflare/cfssl/releases
#把下载好的cfssl工具上传到服务器
#yum -y install lrzsz
[root@k8s-master1 k8s-work]# ll
total 40232
-rw-r--r-- 1 root root 16659824 Mar  9  2022 cfssl_1.6.1_linux_amd64
-rw-r--r-- 1 root root 13502544 Mar  9  2022 cfssl-certinfo_1.6.1_linux_amd64
-rw-r--r-- 1 root root 11029744 Mar  9  2022 cfssljson_1.6.1_linux_amd64
# 授权可执行权限
[root@k8s-master1 k8s-work]# chmod +x cfssl*
[root@k8s-master1 k8s-work]# ll
total 40232
-rwxr-xr-x 1 root root 16659824 Mar  9  2022 cfssl_1.6.1_linux_amd64
-rwxr-xr-x 1 root root 13502544 Mar  9  2022 cfssl-certinfo_1.6.1_linux_amd64
-rwxr-xr-x 1 root root 11029744 Mar  9  2022 cfssljson_1.6.1_linux_amd64
# 修改名称,放到/usr/local/bin目录下
[root@k8s-master1 k8s-work]# mv cfssl_1.6.1_linux_amd64 /usr/local/bin/cfssl
[root@k8s-master1 k8s-work]# mv cfssl-certinfo_1.6.1_linux_amd64 /usr/local/bin/cfssl-certinfo
[root@k8s-master1 k8s-work]# mv cfssljson_1.6.1_linux_amd64 /usr/local/bin/cfssljson
# 安装完成,查看cfssl版本
[root@k8s-master1 k8s-work]# cfssl version
Version: 1.6.1
Runtime: go1.12.12

2.4.3 创建CA证书

ca作为证书颁发机构

2.4.3.1 配置ca证书请求文件

cat > ca-csr.json <<"EOF"
{
  "CN": "kubernetes",
  "key": {
      "algo": "rsa",
      "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "kubemsb",
      "OU": "CN"
    }
  ],
  "ca": {
          "expiry": "87600h"
  }
}
EOF

2.4.3.2 创建ca证书

cfssl gencert -initca ca-csr.json | cfssljson -bare ca
[root@k8s-master1 k8s-work]# cfssl gencert -initca ca-csr.json | cfssljson -bare ca
2024/01/04 09:22:43 [INFO] generating a new CA key and certificate from CSR
2024/01/04 09:22:43 [INFO] generate received request
2024/01/04 09:22:43 [INFO] received CSR
2024/01/04 09:22:43 [INFO] generating key: rsa-2048
2024/01/04 09:22:43 [INFO] encoded CSR
2024/01/04 09:22:43 [INFO] signed certificate with serial number 338731219198113317417686336532940600662573621163
​
#输出ca.csr ca-key.pem ca.pem
[root@k8s-master1 k8s-work]# ll
total 16
-rw-r--r-- 1 root root 1045 Jan  4 09:22 ca.csr
-rw-r--r-- 1 root root  256 Jan  4 09:22 ca-csr.json
-rw------- 1 root root 1679 Jan  4 09:22 ca-key.pem
-rw-r--r-- 1 root root 1310 Jan  4 09:22 ca.pem

2.4.3.3 配置ca证书策略

cfssl print-defaults config > ca-config.json
cat > ca-config.json <<"EOF"
{
  "signing": {
      "default": {
          "expiry": "87600h"
        },
      "profiles": {
          "kubernetes": {
              "usages": [
                  "signing",
                  "key encipherment",
                  "server auth",
                  "client auth"
              ],
              "expiry": "87600h"
          }
      }
  }
}
EOF

2.4.4 创建etcd证书

2.4.4.1 配置etcd请求文件

192.168.198.150-151预留的ip

cat > etcd-csr.json <<"EOF"
{
  "CN": "etcd",
  "hosts": [
    "127.0.0.1",
    "192.168.198.144",
    "192.168.198.145",
    "192.168.198.146",
    "192.168.198.150",
    "192.168.198.151"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [{
    "C": "CN",
    "ST": "Beijing",
    "L": "Beijing",
    "O": "kubemsb",
    "OU": "CN"
  }]
}
EOF

2.4.4.2 生成etcd证书

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes etcd-csr.json | cfssljson  -bare etcd

生成etcd.csr、etcd-key.pem、etcd.pem

[root@k8s-master1 k8s-work]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes etcd-csr.json | cfssljson  -bare etcd
2024/01/04 10:18:44 [INFO] generate received request
2024/01/04 10:18:44 [INFO] received CSR
2024/01/04 10:18:44 [INFO] generating key: rsa-2048
2024/01/04 10:18:44 [INFO] encoded CSR
2024/01/04 10:18:44 [INFO] signed certificate with serial number 615580008866301102078218902811936499168508210128

2.4.5 部署etcd集群

2.4.5.1 下载etcd软件包

https://github.com/etcd-io/etcd/releases/download/v3.5.11/etcd-v3.5.11-linux-amd64.tar.gz

2.4.5.2 安装etcd软件

#解压etcd源码包
[root@k8s-master1 k8s-work]# tar -xf etcd-v3.5.11-linux-amd64.tar.gz
​
[root@k8s-master1 k8s-work]# cd etcd-v3.5.11-linux-amd64
[root@k8s-master1 etcd-v3.5.11-linux-amd64]# ll
total 54896
drwxr-xr-x 3 528287 89939       40 Dec  7 18:30 Documentation
-rwxr-xr-x 1 528287 89939 23535616 Dec  7 18:30 etcd
-rwxr-xr-x 1 528287 89939 17739776 Dec  7 18:30 etcdctl
-rwxr-xr-x 1 528287 89939 14864384 Dec  7 18:30 etcdutl
-rw-r--r-- 1 528287 89939    42066 Dec  7 18:30 README-etcdctl.md
-rw-r--r-- 1 528287 89939     7359 Dec  7 18:30 README-etcdutl.md
-rw-r--r-- 1 528287 89939     9394 Dec  7 18:30 README.md
-rw-r--r-- 1 528287 89939     7896 Dec  7 18:30 READMEv2-etcdctl.md
​
#把etcd执行文件拷贝到/usr/local/bin目录下,后面配置文件都指定在这个文件执行命令
[root@k8s-master1 etcd-v3.5.11-linux-amd64]# cp etcd* /usr/local/bin/
#分发到其他节点
[root@k8s-master1 etcd-v3.5.11-linux-amd64]# scp etcd* k8s-master2:/usr/local/bin/
etcd                                                                                                                              100%   22MB  53.1MB/s   00:00
etcdctl                                                                                                                           100%   17MB  48.6MB/s   00:00
etcdutl                                                                                                                           100%   14MB  60.6MB/s   00:00
[root@k8s-master1 etcd-v3.5.11-linux-amd64]# scp etcd* k8s-master3:/usr/local/bin/
etcd                                                                                                                              100%   22MB  64.5MB/s   00:00
etcdctl                                                                                                                           100%   17MB  95.0MB/s   00:00
etcdutl                                                                                                                           100%   14MB  79.0MB/s   00:00
[root@k8s-master1 etcd-v3.5.11-linux-amd64]#

2.4.5.4 创建配置文件

mkdir /etc/etcd

k8s-master1 etcd配置

cat >  /etc/etcd/etcd.conf <<EOF
#[Member]
ETCD_NAME="etcd1"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.198.144:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.198.144:2379,http://127.0.0.1:2379"
​
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.198.144:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.198.144:2379"
ETCD_INITIAL_CLUSTER="etcd1=https://192.168.198.144:2380,etcd2=https://192.168.198.145:2380,etcd3=https://192.168.198.146:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
EOF
说明:
ETCD_NAME:节点名称,集群中唯一
ETCD_DATA_DIR:数据目录
ETCD_LISTEN_PEER_URLS:集群通信监听地址
ETCD_LISTEN_CLIENT_URLS:客户端访问监听地址
ETCD_INITIAL_ADVERTISE_PEER_URLS:集群通告地址
ETCD_ADVERTISE_CLIENT_URLS:客户端通告地址
ETCD_INITIAL_CLUSTER:集群节点地址
ETCD_INITIAL_CLUSTER_TOKEN:集群Token
ETCD_INITIAL_CLUSTER_STATE:加入集群的当前状态,new是新集群,existing表示加入已有集群

k8s-master2 etcd配置

cat >  /etc/etcd/etcd.conf <<"EOF"
#[Member]
ETCD_NAME="etcd2"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.198.145:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.198.145:2379,http://127.0.0.1:2379"
​
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.198.145:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.198.145:2379"
ETCD_INITIAL_CLUSTER="etcd1=https://192.168.198.144:2380,etcd2=https://192.168.198.145:2380,etcd3=https://192.168.198.146:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
EOF

k8s-master3 etcd配置

cat >  /etc/etcd/etcd.conf <<"EOF"
#[Member]
ETCD_NAME="etcd3"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.198.146:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.198.146:2379,http://127.0.0.1:2379"
​
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.198.146:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.198.146:2379"
ETCD_INITIAL_CLUSTER="etcd1=https://192.168.198.144:2380,etcd2=https://192.168.198.145:2380,etcd3=https://192.168.198.146:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
EOF

2.4.5.5 创建服务配置文件

mkdir -p /etc/etcd/ssl
mkdir -p /var/lib/etcd/default.etcd
[root@k8s-master1 etcd]# cd /data/k8s-work
[root@k8s-master1 k8s-work]# ll
total 19896
-rw-r--r-- 1 root   root       356 Jan  4 10:03 ca-config.json
-rw-r--r-- 1 root   root      1045 Jan  4 09:22 ca.csr
-rw-r--r-- 1 root   root       256 Jan  4 09:22 ca-csr.json
-rw------- 1 root   root      1679 Jan  4 09:22 ca-key.pem
-rw-r--r-- 1 root   root      1310 Jan  4 09:22 ca.pem
-rw-r--r-- 1 root   root      1078 Jan  4 10:18 etcd.csr
-rw-r--r-- 1 root   root       331 Jan  4 10:16 etcd-csr.json
-rw------- 1 root   root      1679 Jan  4 10:18 etcd-key.pem
-rw-r--r-- 1 root   root      1452 Jan  4 10:18 etcd.pem
drwxr-xr-x 3 528287 89939      163 Dec  7 18:30 etcd-v3.5.11-linux-amd64
-rw-r--r-- 1 root   root  20334735 Dec  7 18:36 etcd-v3.5.11-linux-amd64.tar.gz
#拷贝生成的etcd,ca证书到对应ssl目录
[root@k8s-master1 k8s-work]# cp ca*.pem /etc/etcd/ssl
[root@k8s-master1 k8s-work]# cp etcd*.pem /etc/etcd/ssl
#分发证书到其他节点
[root@k8s-master1 k8s-work]# scp ca*.pem k8s-master2:/etc/etcd/ssl
ca-key.pem                                                                                                                        100% 1679     1.4MB/s   00:00
ca.pem                                                                                                                            100% 1310     1.0MB/s   00:00
[root@k8s-master1 k8s-work]# scp ca*.pem k8s-master3:/etc/etcd/ssl
ca-key.pem                                                                                                                        100% 1679     1.3MB/s   00:00
ca.pem
​
[root@k8s-master1 k8s-work]# scp etcd*.pem k8s-master2:/etc/etcd/ssl
etcd-key.pem                                                                                                                      100% 1679     1.1MB/s   00:00
etcd.pem                                                                                                                          100% 1452     1.2MB/s   00:00
[root@k8s-master1 k8s-work]# scp etcd*.pem k8s-master3:/etc/etcd/ssl
etcd-key.pem                                                                                                                      100% 1679     1.4MB/s   00:00
etcd.pem

生成etcd启动文件,三个节点配置一样

cat > /etc/systemd/system/etcd.service <<"EOF"
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
​
[Service]
Type=notify
EnvironmentFile=-/etc/etcd/etcd.conf
WorkingDirectory=/var/lib/etcd/
ExecStart=/usr/local/bin/etcd \
  --cert-file=/etc/etcd/ssl/etcd.pem \
  --key-file=/etc/etcd/ssl/etcd-key.pem \
  --trusted-ca-file=/etc/etcd/ssl/ca.pem \
  --peer-cert-file=/etc/etcd/ssl/etcd.pem \
  --peer-key-file=/etc/etcd/ssl/etcd-key.pem \
  --peer-trusted-ca-file=/etc/etcd/ssl/ca.pem \
  --peer-client-cert-auth \
  --client-cert-auth
Restart=on-failure
RestartSec=5
LimitNOFILE=65536
​
[Install]
WantedBy=multi-user.target
EOF

2.4.5.7 启动etcd集群

systemctl daemon-reload
systemctl enable --now etcd.service
systemctl status etcd


[root@k8s-master3 etcd]# systemctl daemon-reload
[root@k8s-master3 etcd]# systemctl enable --now etcd.service
[root@k8s-master3 etcd]# systemctl status etcd
● etcd.service - Etcd Server
   Loaded: loaded (/etc/systemd/system/etcd.service; enabled; vendor preset: disabled)
   Active: active (running) since Thu 2024-01-04 11:21:03 CST; 1min 15s ago
 Main PID: 4515 (etcd)
   CGroup: /system.slice/etcd.service
           └─4515 /usr/local/bin/etcd --cert-file=/etc/etcd/ssl/etcd.pem --key-file=/etc/etcd/ssl/etcd-key.pem --trusted-ca-file=/etc/etcd/ssl/ca.pem --peer-cert...

Jan 04 11:21:03 k8s-master3 etcd[4515]: {"level":"info","ts":"2024-01-04T11:21:03.193129+0800","caller":"api/capability.go:75","msg":"enabled capabilit...on":"3.0"}
Jan 04 11:21:03 k8s-master3 etcd[4515]: {"level":"info","ts":"2024-01-04T11:21:03.19358+0800","caller":"etcdserver/server.go:2066","msg":"published local member ...
Jan 04 11:21:03 k8s-master3 etcd[4515]: {"level":"info","ts":"2024-01-04T11:21:03.1937+0800","caller":"embed/serve.go:103","msg":"ready to serve client requests"}
Jan 04 11:21:03 k8s-master3 etcd[4515]: {"level":"info","ts":"2024-01-04T11:21:03.194023+0800","caller":"embed/serve.go:103","msg":"ready to serve client requests"}
Jan 04 11:21:03 k8s-master3 etcd[4515]: {"level":"info","ts":"2024-01-04T11:21:03.194473+0800","caller":"embed/serve.go:187","msg":"serving client traf...0.1:2379"}
Jan 04 11:21:03 k8s-master3 systemd[1]: Started Etcd Server.
Jan 04 11:21:03 k8s-master3 etcd[4515]: {"level":"info","ts":"2024-01-04T11:21:03.195005+0800","caller":"etcdmain/main.go:44","msg":"notifying init daemon"}
Jan 04 11:21:03 k8s-master3 etcd[4515]: {"level":"info","ts":"2024-01-04T11:21:03.195052+0800","caller":"etcdmain/main.go:50","msg":"successfully notif...t daemon"}
Jan 04 11:21:03 k8s-master3 etcd[4515]: {"level":"info","ts":"2024-01-04T11:21:03.196251+0800","caller":"embed/serve.go:250","msg":"serving client traf...146:2379"}
Jan 04 11:21:04 k8s-master3 etcd[4515]: {"level":"info","ts":"2024-01-04T11:21:04.065509+0800","caller":"membership/cluster.go:576","msg":"updated clus...to":"3.5"}
Hint: Some lines were ellipsized, use -l to show in full.

2.4.5.8 验证集群状态

[root@k8s-master3 etcd]# etcdctl member list
3ed6f5bbee8d7853, started, etcd2, https://192.168.198.145:2380, https://192.168.198.145:2379, false
b6b5743177b982b2, started, etcd3, https://192.168.198.146:2380, https://192.168.198.146:2379, false
f79986bfdb812e09, started, etcd1, https://192.168.198.144:2380, https://192.168.198.144:2379, false
[root@k8s-master3 etcd]#
[root@k8s-master3 etcd]#
[root@k8s-master3 etcd]#
[root@k8s-master3 etcd]#
[root@k8s-master3 etcd]# etcdctl member list -w table
+------------------+---------+-------+------------------------------+------------------------------+------------+
|        ID        | STATUS  | NAME  |          PEER ADDRS          |         CLIENT ADDRS         | IS LEARNER |
+------------------+---------+-------+------------------------------+------------------------------+------------+
| 3ed6f5bbee8d7853 | started | etcd2 | https://192.168.198.145:2380 | https://192.168.198.145:2379 |      false |
| b6b5743177b982b2 | started | etcd3 | https://192.168.198.146:2380 | https://192.168.198.146:2379 |      false |
| f79986bfdb812e09 | started | etcd1 | https://192.168.198.144:2380 | https://192.168.198.144:2379 |      false |
+------------------+---------+-------+------------------------------+------------------------------+------------+
ETCDCTL_API=3 /usr/local/bin/etcdctl --write-out=table --cacert=/etc/etcd/ssl/ca.pem --cert=/etc/etcd/ssl/etcd.pem --key=/etc/etcd/ssl/etcd-key.pem --endpoints=https://192.168.198.144:2379,https://192.168.198.145:2379,https://192.168.198.146:2379 endpoint status
​
#IS LEADER 为true的为主节点
[root@k8s-master3 etcd]# ETCDCTL_API=3 /usr/local/bin/etcdctl --write-out=table --cacert=/etc/etcd/ssl/ca.pem --cert=/etc/etcd/ssl/etcd.pem --key=/etc/etcd/ssl/etcd-key.pem --endpoints=https://192.168.198.144:2379,https://192.168.198.145:2379,https://192.168.198.146:2379 endpoint status
+------------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
|           ENDPOINT           |        ID        | VERSION | DB SIZE | IS LEADER | IS LEARNER | RAFT TERM | RAFT INDEX | RAFT APPLIED INDEX | ERRORS |
+------------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
| https://192.168.198.144:2379 | f79986bfdb812e09 |  3.5.11 |   20 kB |      true |      false |         2 |          9 |                  9 |        |
| https://192.168.198.145:2379 | 3ed6f5bbee8d7853 |  3.5.11 |   20 kB |     false |      false |         2 |          9 |                  9 |        |
| https://192.168.198.146:2379 | b6b5743177b982b2 |  3.5.11 |   20 kB |     false |      false |         2 |          9 |                  9 |        |
+------------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+

2.5 Kubernetes集群部署

2.5.1 Kubernetes软件包下载

wget https://dl.k8s.io/v1.28.0/kubernetes-server-linux-amd64.tar.gz

2.5.2 Kubernetes软件包安装

tar -xvf kubernetes-server-linux-amd64.tar.gz
​
cd kubernetes/server/bin/
​
cp kube-apiserver kube-controller-manager kube-scheduler kubectl /usr/local/bin/

2.5.3 Kubernetes软件分发

scp kube-apiserver kube-controller-manager kube-scheduler kubectl k8s-master2:/usr/local/bin/
scp kube-apiserver kube-controller-manager kube-scheduler kubectl k8s-master3:/usr/local/bin/

2.5.4 在集群节点上创建目录

#master节点上创建
mkdir -p /etc/kubernetes/
mkdir -p /etc/kubernetes/ssl
mkdir -p /var/log/kubernetes

2.5.5 部署api-server

2.5.5.1 创建apiserver证书请求文件

cat > kube-apiserver-csr.json << "EOF"
{
"CN": "kubernetes",
  "hosts": [
    "127.0.0.1",
    "192.168.198.144",
    "192.168.198.145",
    "192.168.198.146",
    "192.168.198.147",
    "192.168.198.148",
    "192.168.198.149",
    "192.168.198.150",
    "192.168.198.151",
    "192.168.198.152",
    "192.168.198.100",
    "10.96.0.1",
    "kubernetes",
    "kubernetes.default",
    "kubernetes.default.svc",
    "kubernetes.default.svc.cluster",
    "kubernetes.default.svc.cluster.local"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "kubemsb",
      "OU": "CN"
    }
  ]
}
EOF

2.5.5.2 生成apiserver证书及token文件

生成kube-apiserver.csr、kube-apiserver-key.pem、kube-apiserver.pem

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-apiserver-csr.json | cfssljson -bare kube-apiserver
#生成token.csv
cat > token.csv << EOF
$(head -c 16 /dev/urandom | od -An -t x | tr -d ' '),kubelet-bootstrap,10001,"system:kubelet-bootstrap"
EOF

2.5.5.3 创建apiserver服务配置文件

cat > /etc/kubernetes/kube-apiserver.conf << "EOF"
KUBE_APISERVER_OPTS="--enable-admission-plugins=NamespaceLifecycle,NodeRestriction,LimitRanger,ServiceAccount,DefaultStorageClass,ResourceQuota \
  --anonymous-auth=false \
  --bind-address=192.168.198.144 \
  --advertise-address=192.168.198.144 \
  --secure-port=6443 \
  --authorization-mode=Node,RBAC \
  --runtime-config=api/all=true \
  --enable-bootstrap-token-auth \
  --service-cluster-ip-range=10.96.0.0/16 \
  --token-auth-file=/etc/kubernetes/token.csv \
  --service-node-port-range=30000-32767 \
  --tls-cert-file=/etc/kubernetes/ssl/kube-apiserver.pem  \
  --tls-private-key-file=/etc/kubernetes/ssl/kube-apiserver-key.pem \
  --client-ca-file=/etc/kubernetes/ssl/ca.pem \
  --kubelet-client-certificate=/etc/kubernetes/ssl/kube-apiserver.pem \
  --kubelet-client-key=/etc/kubernetes/ssl/kube-apiserver-key.pem \
  --service-account-key-file=/etc/kubernetes/ssl/ca-key.pem \
  --service-account-signing-key-file=/etc/kubernetes/ssl/ca-key.pem  \
  --service-account-issuer=api \
  --etcd-cafile=/etc/etcd/ssl/ca.pem \
  --etcd-certfile=/etc/etcd/ssl/etcd.pem \
  --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem \
  --etcd-servers=https://192.168.198.144:2379,https://192.168.198.145:2379,https://192.168.198.146:2379 \
  --allow-privileged=true \
  --apiserver-count=3 \
  --audit-log-maxage=30 \
  --audit-log-maxbackup=3 \
  --audit-log-maxsize=100 \
  --audit-log-path=/var/log/kube-apiserver-audit.log \
  --event-ttl=1h \
  --v=4"
EOF

2.5.5.4 创建apiserver服务管理配置文件

cat > /etc/systemd/system/kube-apiserver.service << "EOF"
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=etcd.service
Wants=etcd.service
​
[Service]
EnvironmentFile=-/etc/kubernetes/kube-apiserver.conf
ExecStart=/usr/local/bin/kube-apiserver $KUBE_APISERVER_OPTS
Restart=on-failure
RestartSec=5
Type=notify
LimitNOFILE=65536
​
[Install]
WantedBy=multi-user.target
EOF

2.5.5.5 同步文件到集群master节点

cp ca*.pem /etc/kubernetes/ssl/
cp kube-apiserver*.pem /etc/kubernetes/ssl/
cp token.csv /etc/kubernetes/
​
scp /etc/kubernetes/ssl/ca*.pem k8s-master2:/etc/kubernetes/ssl
scp /etc/kubernetes/ssl/ca*.pem k8s-master3:/etc/kubernetes/ssl
​
scp /etc/kubernetes/ssl/kube-apiserver*.pem k8s-master2:/etc/kubernetes/ssl
scp /etc/kubernetes/ssl/kube-apiserver*.pem k8s-master3:/etc/kubernetes/ssl
​
scp /etc/kubernetes/token.csv k8s-master2:/etc/kubernetes
scp /etc/kubernetes/token.csv k8s-master3:/etc/kubernetes
#需要修改为对应主机的ip地址
scp /etc/kubernetes/kube-apiserver.conf k8s-master2:/etc/kubernetes/kube-apiserver.conf
scp /etc/kubernetes/kube-apiserver.conf k8s-master3:/etc/kubernetes/kube-apiserver.conf
scp /etc/systemd/system/kube-apiserver.service k8s-master2:/etc/systemd/system/kube-apiserver.service
scp /etc/systemd/system/kube-apiserver.service k8s-master3:/etc/systemd/system/kube-apiserver.service

2.5.5.6 启动apiserver服务

systemctl daemon-reload
systemctl enable --now kube-apiserver
systemctl status kube-apiserver
​
​
# 测试
curl --insecure https://192.168.198.144:6443/
curl --insecure https://192.168.198.145:6443/
curl --insecure https://192.168.198.146:6443/
curl --insecure https://192.168.198.100:6443/
​
[root@k8s-master1 kubernetes]# curl --insecure https://192.168.198.100:6443/
{
  "kind": "Status",
  "apiVersion": "v1",
  "metadata": {},
  "status": "Failure",
  "message": "Unauthorized",
  "reason": "Unauthorized",
  "code": 401
}

2.5.6 部署kubectl

2.5.6.1 创建kubectl证书请求文件

cat > admin-csr.json << "EOF"
{
  "CN": "admin",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:masters",
      "OU": "system"
    }
  ]
}
EOF

2.5.6.2 生成证书文件

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes admin-csr.json | cfssljson -bare admin

2.5.6.3 复制文件到指定目录

cp admin*.pem /etc/kubernetes/ssl/

2.5.6.4 生成kube.config配置文件

kube.config 为 kubectl 的配置文件,包含访问 apiserver 的所有信息,如 apiserver 地址、CA 证书和自身使用的证书

[root@k8s-master1 k8s-work]# kubectl config set-cluster kubernetes --certificate-authority=ca.pem --embed-certs=true --server=https://192.168.198.100:6443 --kubeconfig=kube.config
Cluster "kubernetes" set.
​
[root@k8s-master1 k8s-work]# cat kube.config
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURtakNDQW9LZ0F3SUJBZ0lVTzFVN3NvbE1URUxNb2lBU2VyNlV0RlFDbjZzd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1pURUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEVEQU9CZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByCmRXSmxjbTVsZEdWek1CNFhEVEkwTURFd05EQXhNVGd3TUZvWERUTTBNREV3TVRBeE1UZ3dNRm93WlRFTE1Ba0cKQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbGFXcHBibWN4RURBTwpCZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByZFdKbGNtNWxkR1Z6Ck1JSUJJakFOQmdrcWhraUc5dzBCQVFFRkFBT0NBUThBTUlJQkNnS0NBUUVBcjJxTGlPc0NpK2RZbnEwK1lha2EKUHZoZTdFMFY0c3BUd1ZkMWNSVGU3eTY1ekdXY2tKOXVCKzNKWjl3bGhkL3d5Y0NuaTN0d2RoVVh2bW1RRTdJcwphVkJhenpzRjFGcDE0MFdkbjVZcGZEd0V4OWR3QitaVE83SnZncXFBUTlnTlRyaGZ3UkpVeUVIZDcvaUY2NE5RCkhlTTJmQm1QUHpXeWwvdkc1bVB3UVBvL1krcnMxckZ6c2JVRG1EYmJ5enQxNjZXblVlVWozYzB3aFp1Y2hOb1oKSDFwbjZXTXFIdWxhM2FuaElQWGJVa0VXK1FVVzZLU1FnVm1MVzZZbVlEZGROYisxWkhxb1FKQUI5YUNRRlgrZgpnTXQzSnBIQXJPY3hWTG1leStMYzQ5RGhtQVZDZVcxQkZOeEhpTVZoZGo1czljWjQyUlgvV1diWlZpWjVGeGsyCldRSURBUUFCbzBJd1FEQU9CZ05WSFE4QkFmOEVCQU1DQVFZd0R3WURWUjBUQVFIL0JBVXdBd0VCL3pBZEJnTlYKSFE0RUZnUVVLYzZIV3RTRlQ3R3BFTFJtVUhaeldxUHdhRG93RFFZSktvWklodmNOQVFFTEJRQURnZ0VCQUYxZQpUY21oZEdzcUI5YmwxVjFVeE0wczg4dm05VjJ1dnhIOEhEVmtIdjJ4eUxucEFwVWpHQldPZ3JRdSsyMXErdE1lCkVNa2hRUzlFOGRQTkQzSkgxbmdob3lyN0dad3k0SFVmQkxoOXdNTVNHd3plaWJJd3lXRUtQMUlBbmlIbmFxUW4KTDBUMlVzZk81c0x6MXRiRHlKWXZQbXA4aHVJTkRCdFUrSmtGY3huM21lanluSFpVeEJEZExURUtqWlNib1VzVAo2NXArMzNzalhlc2wwQVZEMlg0UUo5NytWa0I4ZXNFcnZQaUVRdmJyWG9OQTVROVNZNk5xZ1JtUGo4VjNZTEdSCldXVjB3SGphT0dCUWx1OUlqbnBIWGs2U2JmTmpCd25vS01iWEFOcWVUWDdNSXgwOWd6QmphUTJWWUlnSFh3VloKbGY3azIxMDBkR0JNajRMd3hwND0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
    server: https://192.168.198.100:6443
  name: kubernetes
contexts: null
current-context: ""
kind: Config
preferences: {}
users: null
[root@k8s-master1 k8s-work]# kubectl config set-credentials admin --client-certificate=admin.pem --client-key=admin-key.pem --embed-certs=true --kubeconfig=kube.config
User "admin" set.
​
[root@k8s-master1 k8s-work]# cat kube.config
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURtakNDQW9LZ0F3SUJBZ0lVTzFVN3NvbE1URUxNb2lBU2VyNlV0RlFDbjZzd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1pURUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEVEQU9CZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByCmRXSmxjbTVsZEdWek1CNFhEVEkwTURFd05EQXhNVGd3TUZvWERUTTBNREV3TVRBeE1UZ3dNRm93WlRFTE1Ba0cKQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbGFXcHBibWN4RURBTwpCZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByZFdKbGNtNWxkR1Z6Ck1JSUJJakFOQmdrcWhraUc5dzBCQVFFRkFBT0NBUThBTUlJQkNnS0NBUUVBcjJxTGlPc0NpK2RZbnEwK1lha2EKUHZoZTdFMFY0c3BUd1ZkMWNSVGU3eTY1ekdXY2tKOXVCKzNKWjl3bGhkL3d5Y0NuaTN0d2RoVVh2bW1RRTdJcwphVkJhenpzRjFGcDE0MFdkbjVZcGZEd0V4OWR3QitaVE83SnZncXFBUTlnTlRyaGZ3UkpVeUVIZDcvaUY2NE5RCkhlTTJmQm1QUHpXeWwvdkc1bVB3UVBvL1krcnMxckZ6c2JVRG1EYmJ5enQxNjZXblVlVWozYzB3aFp1Y2hOb1oKSDFwbjZXTXFIdWxhM2FuaElQWGJVa0VXK1FVVzZLU1FnVm1MVzZZbVlEZGROYisxWkhxb1FKQUI5YUNRRlgrZgpnTXQzSnBIQXJPY3hWTG1leStMYzQ5RGhtQVZDZVcxQkZOeEhpTVZoZGo1czljWjQyUlgvV1diWlZpWjVGeGsyCldRSURBUUFCbzBJd1FEQU9CZ05WSFE4QkFmOEVCQU1DQVFZd0R3WURWUjBUQVFIL0JBVXdBd0VCL3pBZEJnTlYKSFE0RUZnUVVLYzZIV3RTRlQ3R3BFTFJtVUhaeldxUHdhRG93RFFZSktvWklodmNOQVFFTEJRQURnZ0VCQUYxZQpUY21oZEdzcUI5YmwxVjFVeE0wczg4dm05VjJ1dnhIOEhEVmtIdjJ4eUxucEFwVWpHQldPZ3JRdSsyMXErdE1lCkVNa2hRUzlFOGRQTkQzSkgxbmdob3lyN0dad3k0SFVmQkxoOXdNTVNHd3plaWJJd3lXRUtQMUlBbmlIbmFxUW4KTDBUMlVzZk81c0x6MXRiRHlKWXZQbXA4aHVJTkRCdFUrSmtGY3huM21lanluSFpVeEJEZExURUtqWlNib1VzVAo2NXArMzNzalhlc2wwQVZEMlg0UUo5NytWa0I4ZXNFcnZQaUVRdmJyWG9OQTVROVNZNk5xZ1JtUGo4VjNZTEdSCldXVjB3SGphT0dCUWx1OUlqbnBIWGs2U2JmTmpCd25vS01iWEFOcWVUWDdNSXgwOWd6QmphUTJWWUlnSFh3VloKbGY3azIxMDBkR0JNajRMd3hwND0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
    server: https://192.168.198.100:6443
  name: kubernetes
contexts: null
current-context: ""
kind: Config
preferences: {}
users:
- name: admin
  user:
    client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUQzVENDQXNXZ0F3SUJBZ0lVWUpLNkpBSXgvMlRXZFR0cGhOejd4WmxscVBFd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1pURUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEVEQU9CZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByCmRXSmxjbTVsZEdWek1CNFhEVEkwTURFd05EQTNNamt3TUZvWERUTTBNREV3TVRBM01qa3dNRm93YXpFTE1Ba0cKQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbGFXcHBibWN4RnpBVgpCZ05WQkFvVERuTjVjM1JsYlRwdFlYTjBaWEp6TVE4d0RRWURWUVFMRXdaemVYTjBaVzB4RGpBTUJnTlZCQU1UCkJXRmtiV2x1TUlJQklqQU5CZ2txaGtpRzl3MEJBUUVGQUFPQ0FROEFNSUlCQ2dLQ0FRRUF0RkVvOTNENnlXSysKMXpDRnhhMmwxUUNaUURxWnphWEU4YW9EQktEOHFES0V6YllUaE5PbVVBS1JiUUsrN2l1aXlVdTdRY3pqektXeApMSnhHSlpvRms3N29tbENMOVNlWURJY0EwM3l4cnlOTXR6eS92dkVkY0VtUGJuT1FaRytoMVBQQzRIZHJRdjh0CkNZdG1wcnhpSzdiRXZ4dDVWTEZXS2lDRnFMZHRHL3VGd0VLclZRc2RhQlVwNktkOHpoeFRTOGw2REZuaHVSU0gKZkVSK1cyeC8xUXF4Ri8zdkx2dzR0QzFkMnYwSFBqODB5aFozdXdNQWY0VEdKMXdFSmRCQ0VMSUFkUE9Jd1g1egpCTW44R0dPdkh1T2hmaGFOZ0pLUCtKbEUrZmlkMnFYZUoyNHBjM2Y2VGk2NGlyZno5SjhJbGpsMTNSZ1pyNWZlCjQrNTJ6VmZlYlFJREFRQUJvMzh3ZlRBT0JnTlZIUThCQWY4RUJBTUNCYUF3SFFZRFZSMGxCQll3RkFZSUt3WUIKQlFVSEF3RUdDQ3NHQVFVRkJ3TUNNQXdHQTFVZEV3RUIvd1FDTUFBd0hRWURWUjBPQkJZRUZHcGlWY2RYT0FLdgpzTFlvS0QyMGlQK1o5Z0dHTUI4R0ExVWRJd1FZTUJhQUZDbk9oMXJVaFUreHFSQzBabEIyYzFxajhHZzZNQTBHCkNTcUdTSWIzRFFFQkN3VUFBNElCQVFBYjVvT1VJdUJpY01jOW1hcTV4TExJY3I1Um5vcUIvbmxxU3krUFpaMHcKa2xrOEMwbzk0Q0FZb2VJRnhSNWlTcTBZdHRNbG5KRnJxSlcyR0ZENzZOeFRVeEtCSUtiL2llNVNMS3J6VVhXNApacG9mKzFHaUx6dnZRMENIYTZRQkIySkhpZjdSN0Y3RFY3b29JM3REdWNvNkZKcHpscmZNTHVoNHdwTkkyaGlOCk93cHk3Qm9TQVNOR2ZSRWRYOHJvZnRlVEF3RVpOM0txUEtianBETlBOS2ZSZzliRzhReElhMkJ6L0NVYkE0Q2oKR2tEZy9uQnNuMmJoejBlU1ZIdzJYL0tjUUhaSUhHSlBJajhjQ2NHK0tvMFhobll1cTEwVzk0cnppUE5JOHZZYwo4ZEVTQ2ZLT0dBdURmQWxRbTQyejUzaktYMWovMCs2dzluSG5ZKytXa3VaYQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
    client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcFFJQkFBS0NBUUVBdEZFbzkzRDZ5V0srMXpDRnhhMmwxUUNaUURxWnphWEU4YW9EQktEOHFES0V6YllUCmhOT21VQUtSYlFLKzdpdWl5VXU3UWN6anpLV3hMSnhHSlpvRms3N29tbENMOVNlWURJY0EwM3l4cnlOTXR6eS8KdnZFZGNFbVBibk9RWkcraDFQUEM0SGRyUXY4dENZdG1wcnhpSzdiRXZ4dDVWTEZXS2lDRnFMZHRHL3VGd0VLcgpWUXNkYUJVcDZLZDh6aHhUUzhsNkRGbmh1UlNIZkVSK1cyeC8xUXF4Ri8zdkx2dzR0QzFkMnYwSFBqODB5aFozCnV3TUFmNFRHSjF3RUpkQkNFTElBZFBPSXdYNXpCTW44R0dPdkh1T2hmaGFOZ0pLUCtKbEUrZmlkMnFYZUoyNHAKYzNmNlRpNjRpcmZ6OUo4SWxqbDEzUmdacjVmZTQrNTJ6VmZlYlFJREFRQUJBb0lCQVFDY3UzTDFhWkhEWEg1dgpRM0R6ZTFXS2lLT3NyWU1rdW5NdWI4MkJ4NEQxbmp2TEp2bGVXaTNVbS9iV0h5M2dqYk5JYnZoTVlKQ2RRR1I1ClZ6aXQxR3dHbVVsTFlMbldsTnpYL3J6Y0Z5WEhDdExTN3czb0pXS21TSHBRMGtodTFJMkJNWVJ4WWJ1dEYycUoKUWs4dW5NNWtHdEIzSUtWYzFXd0U0Qkh0cmNvOEovVGxkRVRkM3I0cTlKOHFEbXlQTjFRVUlDZ0VzSkdtV2RoNwplQkNpWEdSck9YR3VEcTFuQjB1ZjlLOEVkVE83MEU5ME9GUzFHdW1kbWhKOEFidGRYN1dRZU8wY25FRGRmRDVwCjZvS09nbXU2Q0xIU09ZZENiWndUUWZjUXlkU0JLUTdWOXpQNk85TFlBSHVDZlRkNVE5STg1elcvN0FrblB3YVkKU0JWMlhMdmhBb0dCQU9nRG1QNk51bTdJY0ZPY1oyT3MrL1AwZ1BoR0Q4djlCY25QSnZ0UHJDMmZsNXVhcmF2TQpSbkhXS2w2Wi9DYll1azljQ0dGdXdNMnBEYm1GakU2UUlxbjNNSXpQRGZ1czBBcFFmNWk1b0duTXh5eVlqTGxICkxzK3R4VDA5Znk0NzYyOENwOVRuRlJENzBxZXdSSDdKS3RXL3FlZldzaEprQzBoQzd1TEsrSDA1QW9HQkFNYjEKWGYvTXhLUHJsOTN1R21yMUlYMTNjend3dXpsWVpyUFdaUVBvdVpsZmIvODdwNTZxRHRjWkwrajlkVEswTU5BQQpERFJXbG1VSzBrYmpKTndXdEdPcTN0ZmFRU1pnV2I0amhHR0Y1cWp0alVMSHNUZDB3OG8yREVESGpwZW5DMG85CktkWWQrRkZ6NDBkVVhwK3RHODNZa25JcnNNeVRUY3BGdllwSVF4N1ZBb0dCQUtxZHlxcVhDdHhnNWNsMm9NazUKOG1ZcURaV0Y0Q1FBUTN0dXJKbnVzdzB4NlVseWEvaUVWZUZzdnVlbWtUajM4N3BjVVlWazdyL09hOXRjREJ2Ugovc3ZDalo5ZXZFZXhnNk95SXNMcTdyNGU2dkV1bFgzQ2pQZ0lMNTJqVloxb1R1L3BvZ1g4a1E5V1FFazBaSXBmCjRQSWk2ZzBsWXZvSFBBeTl1L0pubEdoeEFvR0JBTGhhWjIwOUdnQWhyeWpQRmQrQm9EU1gyRWt2aG13T2c2dWoKdnhvdUxMdjIrTm54TnRJSUZaUXVISHl4VGtWYlBkZWVFN0R6Z292QnlUSXlDdGQ4bWsyMzZLRHQ5V3hQM3hnVgo1UFpRa25oNUZXbUppNll0SmJaYSttT1VCWVowSER3QURLSUFSeldDUWxpM3pxMzZRMGNycEJieWNQSStrOWdYCll4ZWMrY1M1QW9HQUUyN1R0by9MNVpxMFpNOUFkM3ZZSUhsRmM4TWdMU3lRbDhaZENsd25LUWNiVzdNVkYxWGwKV1duWEtMU2k0SEVmcmNxMlpPSnM3UHlMMDJrWXgwV0FDZnp1VmtzQ1BvRUZScUdJMFdkWnBPaXhkTWdlZDYrYgpDSnd3Rzd6MFFTOHg5aWhhWllpdUY2VWhFME8zNjFRSVhqMUVZb1pWQzU3Uy82OTR6cVpDNzhNPQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=
[root@k8s-master1 k8s-work]# kubectl config set-context kubernetes --cluster=kubernetes --user=admin --kubeconfig=kube.config
Context "kubernetes" created.
[root@k8s-master1 k8s-work]# cat kube.config
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURtakNDQW9LZ0F3SUJBZ0lVTzFVN3NvbE1URUxNb2lBU2VyNlV0RlFDbjZzd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1pURUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEVEQU9CZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByCmRXSmxjbTVsZEdWek1CNFhEVEkwTURFd05EQXhNVGd3TUZvWERUTTBNREV3TVRBeE1UZ3dNRm93WlRFTE1Ba0cKQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbGFXcHBibWN4RURBTwpCZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByZFdKbGNtNWxkR1Z6Ck1JSUJJakFOQmdrcWhraUc5dzBCQVFFRkFBT0NBUThBTUlJQkNnS0NBUUVBcjJxTGlPc0NpK2RZbnEwK1lha2EKUHZoZTdFMFY0c3BUd1ZkMWNSVGU3eTY1ekdXY2tKOXVCKzNKWjl3bGhkL3d5Y0NuaTN0d2RoVVh2bW1RRTdJcwphVkJhenpzRjFGcDE0MFdkbjVZcGZEd0V4OWR3QitaVE83SnZncXFBUTlnTlRyaGZ3UkpVeUVIZDcvaUY2NE5RCkhlTTJmQm1QUHpXeWwvdkc1bVB3UVBvL1krcnMxckZ6c2JVRG1EYmJ5enQxNjZXblVlVWozYzB3aFp1Y2hOb1oKSDFwbjZXTXFIdWxhM2FuaElQWGJVa0VXK1FVVzZLU1FnVm1MVzZZbVlEZGROYisxWkhxb1FKQUI5YUNRRlgrZgpnTXQzSnBIQXJPY3hWTG1leStMYzQ5RGhtQVZDZVcxQkZOeEhpTVZoZGo1czljWjQyUlgvV1diWlZpWjVGeGsyCldRSURBUUFCbzBJd1FEQU9CZ05WSFE4QkFmOEVCQU1DQVFZd0R3WURWUjBUQVFIL0JBVXdBd0VCL3pBZEJnTlYKSFE0RUZnUVVLYzZIV3RTRlQ3R3BFTFJtVUhaeldxUHdhRG93RFFZSktvWklodmNOQVFFTEJRQURnZ0VCQUYxZQpUY21oZEdzcUI5YmwxVjFVeE0wczg4dm05VjJ1dnhIOEhEVmtIdjJ4eUxucEFwVWpHQldPZ3JRdSsyMXErdE1lCkVNa2hRUzlFOGRQTkQzSkgxbmdob3lyN0dad3k0SFVmQkxoOXdNTVNHd3plaWJJd3lXRUtQMUlBbmlIbmFxUW4KTDBUMlVzZk81c0x6MXRiRHlKWXZQbXA4aHVJTkRCdFUrSmtGY3huM21lanluSFpVeEJEZExURUtqWlNib1VzVAo2NXArMzNzalhlc2wwQVZEMlg0UUo5NytWa0I4ZXNFcnZQaUVRdmJyWG9OQTVROVNZNk5xZ1JtUGo4VjNZTEdSCldXVjB3SGphT0dCUWx1OUlqbnBIWGs2U2JmTmpCd25vS01iWEFOcWVUWDdNSXgwOWd6QmphUTJWWUlnSFh3VloKbGY3azIxMDBkR0JNajRMd3hwND0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
    server: https://192.168.198.100:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: admin
  name: kubernetes
current-context: ""
kind: Config
preferences: {}
users:
- name: admin
  user:
    client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUQzVENDQXNXZ0F3SUJBZ0lVWUpLNkpBSXgvMlRXZFR0cGhOejd4WmxscVBFd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1pURUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEVEQU9CZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByCmRXSmxjbTVsZEdWek1CNFhEVEkwTURFd05EQTNNamt3TUZvWERUTTBNREV3TVRBM01qa3dNRm93YXpFTE1Ba0cKQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbGFXcHBibWN4RnpBVgpCZ05WQkFvVERuTjVjM1JsYlRwdFlYTjBaWEp6TVE4d0RRWURWUVFMRXdaemVYTjBaVzB4RGpBTUJnTlZCQU1UCkJXRmtiV2x1TUlJQklqQU5CZ2txaGtpRzl3MEJBUUVGQUFPQ0FROEFNSUlCQ2dLQ0FRRUF0RkVvOTNENnlXSysKMXpDRnhhMmwxUUNaUURxWnphWEU4YW9EQktEOHFES0V6YllUaE5PbVVBS1JiUUsrN2l1aXlVdTdRY3pqektXeApMSnhHSlpvRms3N29tbENMOVNlWURJY0EwM3l4cnlOTXR6eS92dkVkY0VtUGJuT1FaRytoMVBQQzRIZHJRdjh0CkNZdG1wcnhpSzdiRXZ4dDVWTEZXS2lDRnFMZHRHL3VGd0VLclZRc2RhQlVwNktkOHpoeFRTOGw2REZuaHVSU0gKZkVSK1cyeC8xUXF4Ri8zdkx2dzR0QzFkMnYwSFBqODB5aFozdXdNQWY0VEdKMXdFSmRCQ0VMSUFkUE9Jd1g1egpCTW44R0dPdkh1T2hmaGFOZ0pLUCtKbEUrZmlkMnFYZUoyNHBjM2Y2VGk2NGlyZno5SjhJbGpsMTNSZ1pyNWZlCjQrNTJ6VmZlYlFJREFRQUJvMzh3ZlRBT0JnTlZIUThCQWY4RUJBTUNCYUF3SFFZRFZSMGxCQll3RkFZSUt3WUIKQlFVSEF3RUdDQ3NHQVFVRkJ3TUNNQXdHQTFVZEV3RUIvd1FDTUFBd0hRWURWUjBPQkJZRUZHcGlWY2RYT0FLdgpzTFlvS0QyMGlQK1o5Z0dHTUI4R0ExVWRJd1FZTUJhQUZDbk9oMXJVaFUreHFSQzBabEIyYzFxajhHZzZNQTBHCkNTcUdTSWIzRFFFQkN3VUFBNElCQVFBYjVvT1VJdUJpY01jOW1hcTV4TExJY3I1Um5vcUIvbmxxU3krUFpaMHcKa2xrOEMwbzk0Q0FZb2VJRnhSNWlTcTBZdHRNbG5KRnJxSlcyR0ZENzZOeFRVeEtCSUtiL2llNVNMS3J6VVhXNApacG9mKzFHaUx6dnZRMENIYTZRQkIySkhpZjdSN0Y3RFY3b29JM3REdWNvNkZKcHpscmZNTHVoNHdwTkkyaGlOCk93cHk3Qm9TQVNOR2ZSRWRYOHJvZnRlVEF3RVpOM0txUEtianBETlBOS2ZSZzliRzhReElhMkJ6L0NVYkE0Q2oKR2tEZy9uQnNuMmJoejBlU1ZIdzJYL0tjUUhaSUhHSlBJajhjQ2NHK0tvMFhobll1cTEwVzk0cnppUE5JOHZZYwo4ZEVTQ2ZLT0dBdURmQWxRbTQyejUzaktYMWovMCs2dzluSG5ZKytXa3VaYQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
    client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcFFJQkFBS0NBUUVBdEZFbzkzRDZ5V0srMXpDRnhhMmwxUUNaUURxWnphWEU4YW9EQktEOHFES0V6YllUCmhOT21VQUtSYlFLKzdpdWl5VXU3UWN6anpLV3hMSnhHSlpvRms3N29tbENMOVNlWURJY0EwM3l4cnlOTXR6eS8KdnZFZGNFbVBibk9RWkcraDFQUEM0SGRyUXY4dENZdG1wcnhpSzdiRXZ4dDVWTEZXS2lDRnFMZHRHL3VGd0VLcgpWUXNkYUJVcDZLZDh6aHhUUzhsNkRGbmh1UlNIZkVSK1cyeC8xUXF4Ri8zdkx2dzR0QzFkMnYwSFBqODB5aFozCnV3TUFmNFRHSjF3RUpkQkNFTElBZFBPSXdYNXpCTW44R0dPdkh1T2hmaGFOZ0pLUCtKbEUrZmlkMnFYZUoyNHAKYzNmNlRpNjRpcmZ6OUo4SWxqbDEzUmdacjVmZTQrNTJ6VmZlYlFJREFRQUJBb0lCQVFDY3UzTDFhWkhEWEg1dgpRM0R6ZTFXS2lLT3NyWU1rdW5NdWI4MkJ4NEQxbmp2TEp2bGVXaTNVbS9iV0h5M2dqYk5JYnZoTVlKQ2RRR1I1ClZ6aXQxR3dHbVVsTFlMbldsTnpYL3J6Y0Z5WEhDdExTN3czb0pXS21TSHBRMGtodTFJMkJNWVJ4WWJ1dEYycUoKUWs4dW5NNWtHdEIzSUtWYzFXd0U0Qkh0cmNvOEovVGxkRVRkM3I0cTlKOHFEbXlQTjFRVUlDZ0VzSkdtV2RoNwplQkNpWEdSck9YR3VEcTFuQjB1ZjlLOEVkVE83MEU5ME9GUzFHdW1kbWhKOEFidGRYN1dRZU8wY25FRGRmRDVwCjZvS09nbXU2Q0xIU09ZZENiWndUUWZjUXlkU0JLUTdWOXpQNk85TFlBSHVDZlRkNVE5STg1elcvN0FrblB3YVkKU0JWMlhMdmhBb0dCQU9nRG1QNk51bTdJY0ZPY1oyT3MrL1AwZ1BoR0Q4djlCY25QSnZ0UHJDMmZsNXVhcmF2TQpSbkhXS2w2Wi9DYll1azljQ0dGdXdNMnBEYm1GakU2UUlxbjNNSXpQRGZ1czBBcFFmNWk1b0duTXh5eVlqTGxICkxzK3R4VDA5Znk0NzYyOENwOVRuRlJENzBxZXdSSDdKS3RXL3FlZldzaEprQzBoQzd1TEsrSDA1QW9HQkFNYjEKWGYvTXhLUHJsOTN1R21yMUlYMTNjend3dXpsWVpyUFdaUVBvdVpsZmIvODdwNTZxRHRjWkwrajlkVEswTU5BQQpERFJXbG1VSzBrYmpKTndXdEdPcTN0ZmFRU1pnV2I0amhHR0Y1cWp0alVMSHNUZDB3OG8yREVESGpwZW5DMG85CktkWWQrRkZ6NDBkVVhwK3RHODNZa25JcnNNeVRUY3BGdllwSVF4N1ZBb0dCQUtxZHlxcVhDdHhnNWNsMm9NazUKOG1ZcURaV0Y0Q1FBUTN0dXJKbnVzdzB4NlVseWEvaUVWZUZzdnVlbWtUajM4N3BjVVlWazdyL09hOXRjREJ2Ugovc3ZDalo5ZXZFZXhnNk95SXNMcTdyNGU2dkV1bFgzQ2pQZ0lMNTJqVloxb1R1L3BvZ1g4a1E5V1FFazBaSXBmCjRQSWk2ZzBsWXZvSFBBeTl1L0pubEdoeEFvR0JBTGhhWjIwOUdnQWhyeWpQRmQrQm9EU1gyRWt2aG13T2c2dWoKdnhvdUxMdjIrTm54TnRJSUZaUXVISHl4VGtWYlBkZWVFN0R6Z292QnlUSXlDdGQ4bWsyMzZLRHQ5V3hQM3hnVgo1UFpRa25oNUZXbUppNll0SmJaYSttT1VCWVowSER3QURLSUFSeldDUWxpM3pxMzZRMGNycEJieWNQSStrOWdYCll4ZWMrY1M1QW9HQUUyN1R0by9MNVpxMFpNOUFkM3ZZSUhsRmM4TWdMU3lRbDhaZENsd25LUWNiVzdNVkYxWGwKV1duWEtMU2k0SEVmcmNxMlpPSnM3UHlMMDJrWXgwV0FDZnp1VmtzQ1BvRUZScUdJMFdkWnBPaXhkTWdlZDYrYgpDSnd3Rzd6MFFTOHg5aWhhWllpdUY2VWhFME8zNjFRSVhqMUVZb1pWQzU3Uy82OTR6cVpDNzhNPQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=
[root@k8s-master1 k8s-work]# kubectl config use-context kubernetes --kubeconfig=kube.config
Switched to context "kubernetes".
[root@k8s-master1 k8s-work]# cat kube.config
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURtakNDQW9LZ0F3SUJBZ0lVTzFVN3NvbE1URUxNb2lBU2VyNlV0RlFDbjZzd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1pURUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEVEQU9CZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByCmRXSmxjbTVsZEdWek1CNFhEVEkwTURFd05EQXhNVGd3TUZvWERUTTBNREV3TVRBeE1UZ3dNRm93WlRFTE1Ba0cKQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbGFXcHBibWN4RURBTwpCZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByZFdKbGNtNWxkR1Z6Ck1JSUJJakFOQmdrcWhraUc5dzBCQVFFRkFBT0NBUThBTUlJQkNnS0NBUUVBcjJxTGlPc0NpK2RZbnEwK1lha2EKUHZoZTdFMFY0c3BUd1ZkMWNSVGU3eTY1ekdXY2tKOXVCKzNKWjl3bGhkL3d5Y0NuaTN0d2RoVVh2bW1RRTdJcwphVkJhenpzRjFGcDE0MFdkbjVZcGZEd0V4OWR3QitaVE83SnZncXFBUTlnTlRyaGZ3UkpVeUVIZDcvaUY2NE5RCkhlTTJmQm1QUHpXeWwvdkc1bVB3UVBvL1krcnMxckZ6c2JVRG1EYmJ5enQxNjZXblVlVWozYzB3aFp1Y2hOb1oKSDFwbjZXTXFIdWxhM2FuaElQWGJVa0VXK1FVVzZLU1FnVm1MVzZZbVlEZGROYisxWkhxb1FKQUI5YUNRRlgrZgpnTXQzSnBIQXJPY3hWTG1leStMYzQ5RGhtQVZDZVcxQkZOeEhpTVZoZGo1czljWjQyUlgvV1diWlZpWjVGeGsyCldRSURBUUFCbzBJd1FEQU9CZ05WSFE4QkFmOEVCQU1DQVFZd0R3WURWUjBUQVFIL0JBVXdBd0VCL3pBZEJnTlYKSFE0RUZnUVVLYzZIV3RTRlQ3R3BFTFJtVUhaeldxUHdhRG93RFFZSktvWklodmNOQVFFTEJRQURnZ0VCQUYxZQpUY21oZEdzcUI5YmwxVjFVeE0wczg4dm05VjJ1dnhIOEhEVmtIdjJ4eUxucEFwVWpHQldPZ3JRdSsyMXErdE1lCkVNa2hRUzlFOGRQTkQzSkgxbmdob3lyN0dad3k0SFVmQkxoOXdNTVNHd3plaWJJd3lXRUtQMUlBbmlIbmFxUW4KTDBUMlVzZk81c0x6MXRiRHlKWXZQbXA4aHVJTkRCdFUrSmtGY3huM21lanluSFpVeEJEZExURUtqWlNib1VzVAo2NXArMzNzalhlc2wwQVZEMlg0UUo5NytWa0I4ZXNFcnZQaUVRdmJyWG9OQTVROVNZNk5xZ1JtUGo4VjNZTEdSCldXVjB3SGphT0dCUWx1OUlqbnBIWGs2U2JmTmpCd25vS01iWEFOcWVUWDdNSXgwOWd6QmphUTJWWUlnSFh3VloKbGY3azIxMDBkR0JNajRMd3hwND0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
    server: https://192.168.198.100:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: admin
  name: kubernetes
current-context: kubernetes
kind: Config
preferences: {}
users:
- name: admin
  user:
    client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUQzVENDQXNXZ0F3SUJBZ0lVWUpLNkpBSXgvMlRXZFR0cGhOejd4WmxscVBFd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1pURUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEVEQU9CZ05WQkFvVEIydDFZbVZ0YzJJeEN6QUpCZ05WQkFzVEFrTk9NUk13RVFZRFZRUURFd3ByCmRXSmxjbTVsZEdWek1CNFhEVEkwTURFd05EQTNNamt3TUZvWERUTTBNREV3TVRBM01qa3dNRm93YXpFTE1Ba0cKQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbGFXcHBibWN4RnpBVgpCZ05WQkFvVERuTjVjM1JsYlRwdFlYTjBaWEp6TVE4d0RRWURWUVFMRXdaemVYTjBaVzB4RGpBTUJnTlZCQU1UCkJXRmtiV2x1TUlJQklqQU5CZ2txaGtpRzl3MEJBUUVGQUFPQ0FROEFNSUlCQ2dLQ0FRRUF0RkVvOTNENnlXSysKMXpDRnhhMmwxUUNaUURxWnphWEU4YW9EQktEOHFES0V6YllUaE5PbVVBS1JiUUsrN2l1aXlVdTdRY3pqektXeApMSnhHSlpvRms3N29tbENMOVNlWURJY0EwM3l4cnlOTXR6eS92dkVkY0VtUGJuT1FaRytoMVBQQzRIZHJRdjh0CkNZdG1wcnhpSzdiRXZ4dDVWTEZXS2lDRnFMZHRHL3VGd0VLclZRc2RhQlVwNktkOHpoeFRTOGw2REZuaHVSU0gKZkVSK1cyeC8xUXF4Ri8zdkx2dzR0QzFkMnYwSFBqODB5aFozdXdNQWY0VEdKMXdFSmRCQ0VMSUFkUE9Jd1g1egpCTW44R0dPdkh1T2hmaGFOZ0pLUCtKbEUrZmlkMnFYZUoyNHBjM2Y2VGk2NGlyZno5SjhJbGpsMTNSZ1pyNWZlCjQrNTJ6VmZlYlFJREFRQUJvMzh3ZlRBT0JnTlZIUThCQWY4RUJBTUNCYUF3SFFZRFZSMGxCQll3RkFZSUt3WUIKQlFVSEF3RUdDQ3NHQVFVRkJ3TUNNQXdHQTFVZEV3RUIvd1FDTUFBd0hRWURWUjBPQkJZRUZHcGlWY2RYT0FLdgpzTFlvS0QyMGlQK1o5Z0dHTUI4R0ExVWRJd1FZTUJhQUZDbk9oMXJVaFUreHFSQzBabEIyYzFxajhHZzZNQTBHCkNTcUdTSWIzRFFFQkN3VUFBNElCQVFBYjVvT1VJdUJpY01jOW1hcTV4TExJY3I1Um5vcUIvbmxxU3krUFpaMHcKa2xrOEMwbzk0Q0FZb2VJRnhSNWlTcTBZdHRNbG5KRnJxSlcyR0ZENzZOeFRVeEtCSUtiL2llNVNMS3J6VVhXNApacG9mKzFHaUx6dnZRMENIYTZRQkIySkhpZjdSN0Y3RFY3b29JM3REdWNvNkZKcHpscmZNTHVoNHdwTkkyaGlOCk93cHk3Qm9TQVNOR2ZSRWRYOHJvZnRlVEF3RVpOM0txUEtianBETlBOS2ZSZzliRzhReElhMkJ6L0NVYkE0Q2oKR2tEZy9uQnNuMmJoejBlU1ZIdzJYL0tjUUhaSUhHSlBJajhjQ2NHK0tvMFhobll1cTEwVzk0cnppUE5JOHZZYwo4ZEVTQ2ZLT0dBdURmQWxRbTQyejUzaktYMWovMCs2dzluSG5ZKytXa3VaYQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
    client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcFFJQkFBS0NBUUVBdEZFbzkzRDZ5V0srMXpDRnhhMmwxUUNaUURxWnphWEU4YW9EQktEOHFES0V6YllUCmhOT21VQUtSYlFLKzdpdWl5VXU3UWN6anpLV3hMSnhHSlpvRms3N29tbENMOVNlWURJY0EwM3l4cnlOTXR6eS8KdnZFZGNFbVBibk9RWkcraDFQUEM0SGRyUXY4dENZdG1wcnhpSzdiRXZ4dDVWTEZXS2lDRnFMZHRHL3VGd0VLcgpWUXNkYUJVcDZLZDh6aHhUUzhsNkRGbmh1UlNIZkVSK1cyeC8xUXF4Ri8zdkx2dzR0QzFkMnYwSFBqODB5aFozCnV3TUFmNFRHSjF3RUpkQkNFTElBZFBPSXdYNXpCTW44R0dPdkh1T2hmaGFOZ0pLUCtKbEUrZmlkMnFYZUoyNHAKYzNmNlRpNjRpcmZ6OUo4SWxqbDEzUmdacjVmZTQrNTJ6VmZlYlFJREFRQUJBb0lCQVFDY3UzTDFhWkhEWEg1dgpRM0R6ZTFXS2lLT3NyWU1rdW5NdWI4MkJ4NEQxbmp2TEp2bGVXaTNVbS9iV0h5M2dqYk5JYnZoTVlKQ2RRR1I1ClZ6aXQxR3dHbVVsTFlMbldsTnpYL3J6Y0Z5WEhDdExTN3czb0pXS21TSHBRMGtodTFJMkJNWVJ4WWJ1dEYycUoKUWs4dW5NNWtHdEIzSUtWYzFXd0U0Qkh0cmNvOEovVGxkRVRkM3I0cTlKOHFEbXlQTjFRVUlDZ0VzSkdtV2RoNwplQkNpWEdSck9YR3VEcTFuQjB1ZjlLOEVkVE83MEU5ME9GUzFHdW1kbWhKOEFidGRYN1dRZU8wY25FRGRmRDVwCjZvS09nbXU2Q0xIU09ZZENiWndUUWZjUXlkU0JLUTdWOXpQNk85TFlBSHVDZlRkNVE5STg1elcvN0FrblB3YVkKU0JWMlhMdmhBb0dCQU9nRG1QNk51bTdJY0ZPY1oyT3MrL1AwZ1BoR0Q4djlCY25QSnZ0UHJDMmZsNXVhcmF2TQpSbkhXS2w2Wi9DYll1azljQ0dGdXdNMnBEYm1GakU2UUlxbjNNSXpQRGZ1czBBcFFmNWk1b0duTXh5eVlqTGxICkxzK3R4VDA5Znk0NzYyOENwOVRuRlJENzBxZXdSSDdKS3RXL3FlZldzaEprQzBoQzd1TEsrSDA1QW9HQkFNYjEKWGYvTXhLUHJsOTN1R21yMUlYMTNjend3dXpsWVpyUFdaUVBvdVpsZmIvODdwNTZxRHRjWkwrajlkVEswTU5BQQpERFJXbG1VSzBrYmpKTndXdEdPcTN0ZmFRU1pnV2I0amhHR0Y1cWp0alVMSHNUZDB3OG8yREVESGpwZW5DMG85CktkWWQrRkZ6NDBkVVhwK3RHODNZa25JcnNNeVRUY3BGdllwSVF4N1ZBb0dCQUtxZHlxcVhDdHhnNWNsMm9NazUKOG1ZcURaV0Y0Q1FBUTN0dXJKbnVzdzB4NlVseWEvaUVWZUZzdnVlbWtUajM4N3BjVVlWazdyL09hOXRjREJ2Ugovc3ZDalo5ZXZFZXhnNk95SXNMcTdyNGU2dkV1bFgzQ2pQZ0lMNTJqVloxb1R1L3BvZ1g4a1E5V1FFazBaSXBmCjRQSWk2ZzBsWXZvSFBBeTl1L0pubEdoeEFvR0JBTGhhWjIwOUdnQWhyeWpQRmQrQm9EU1gyRWt2aG13T2c2dWoKdnhvdUxMdjIrTm54TnRJSUZaUXVISHl4VGtWYlBkZWVFN0R6Z292QnlUSXlDdGQ4bWsyMzZLRHQ5V3hQM3hnVgo1UFpRa25oNUZXbUppNll0SmJaYSttT1VCWVowSER3QURLSUFSeldDUWxpM3pxMzZRMGNycEJieWNQSStrOWdYCll4ZWMrY1M1QW9HQUUyN1R0by9MNVpxMFpNOUFkM3ZZSUhsRmM4TWdMU3lRbDhaZENsd25LUWNiVzdNVkYxWGwKV1duWEtMU2k0SEVmcmNxMlpPSnM3UHlMMDJrWXgwV0FDZnp1VmtzQ1BvRUZScUdJMFdkWnBPaXhkTWdlZDYrYgpDSnd3Rzd6MFFTOHg5aWhhWllpdUY2VWhFME8zNjFRSVhqMUVZb1pWQzU3Uy82OTR6cVpDNzhNPQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=

2.5.6.5 准备kubectl配置文件并进行角色绑定

mkdir ~/.kube
cp kube.config ~/.kube/config
kubectl create clusterrolebinding kube-apiserver:kubelet-apis --clusterrole=system:kubelet-api-admin --user kubernetes --kubeconfig=/root/.kube/config

2.5.6.6 查看集群状态

查看集群信息
kubectl cluster-info
​
查看集群组件状态
kubectl get componentstatuses
​
查看命名空间中资源对象
kubectl get all --all-namespaces

2.5.6.7 同步kubectl配置文件到集群其它master节点

#k8s-master2节点上,创建文件夹
mkdir /root/.kube
​
#k8s-master3节点上,创建文件夹
mkdir /root/.kube
​
#把配置文件同步过去
scp /root/.kube/config k8s-master2:/root/.kube/config
scp /root/.kube/config k8s-master3:/root/.kube/config

2.5.7 部署kube-controller-manager

2.5.7.1 创建kube-controller-manager证书请求文件

cat > kube-controller-manager-csr.json << "EOF"
{
    "CN": "system:kube-controller-manager",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "hosts": [
      "127.0.0.1",
      "192.168.198.144",
      "192.168.198.145",
      "192.168.198.146"
    ],
    "names": [
      {
        "C": "CN",
        "ST": "Beijing",
        "L": "Beijing",
        "O": "system:kube-controller-manager",
        "OU": "system"
      }
    ]
}
EOF

2.5.7.2 创建kube-controller-manager证书文件

kube-controller-manager.csr kube-controller-manager-csr.json kube-controller-manager-key.pem kube-controller-manager.pem

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-controller-manager-csr.json | cfssljson -bare kube-controller-manager

2.5.7.3 创建kube-controller-manager的kube-controller-manager.kubeconfig

kubectl config set-cluster kubernetes --certificate-authority=ca.pem --embed-certs=true --server=https://192.168.198.100:6443 --kubeconfig=kube-controller-manager.kubeconfig
​
kubectl config set-credentials system:kube-controller-manager --client-certificate=kube-controller-manager.pem --client-key=kube-controller-manager-key.pem --embed-certs=true --kubeconfig=kube-controller-manager.kubeconfig
​
kubectl config set-context system:kube-controller-manager --cluster=kubernetes --user=system:kube-controller-manager --kubeconfig=kube-controller-manager.kubeconfig
​
kubectl config use-context system:kube-controller-manager --kubeconfig=kube-controller-manager.kubeconfig

2.5.7.4 创建kube-controller-manager配置文件

cat > kube-controller-manager.conf << "EOF"
KUBE_CONTROLLER_MANAGER_OPTS=" \
  --secure-port=10257 \
  --bind-address=127.0.0.1 \
  --kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \
  --service-cluster-ip-range=10.96.0.0/16 \
  --cluster-name=kubernetes \
  --cluster-signing-cert-file=/etc/kubernetes/ssl/ca.pem \
  --cluster-signing-key-file=/etc/kubernetes/ssl/ca-key.pem \
  --allocate-node-cidrs=true \
  --cluster-cidr=10.244.0.0/16 \
  --root-ca-file=/etc/kubernetes/ssl/ca.pem \
  --service-account-private-key-file=/etc/kubernetes/ssl/ca-key.pem \
  --leader-elect=true \
  --feature-gates=RotateKubeletServerCertificate=true \
  --controllers=*,bootstrapsigner,tokencleaner \
  --tls-cert-file=/etc/kubernetes/ssl/kube-controller-manager.pem \
  --tls-private-key-file=/etc/kubernetes/ssl/kube-controller-manager-key.pem \
  --use-service-account-credentials=true \
  --v=2"
EOF

2.5.7.5 创建服务启动文件

cat > kube-controller-manager.service << "EOF"
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes
​
[Service]
EnvironmentFile=/etc/kubernetes/kube-controller-manager.conf
ExecStart=/usr/local/bin/kube-controller-manager $KUBE_CONTROLLER_MANAGER_OPTS
Restart=on-failure
RestartSec=5
​
[Install]
WantedBy=multi-user.target
EOF

2.5.7.6 同步文件到集群master节点

cp kube-controller-manager*.pem /etc/kubernetes/ssl/
cp kube-controller-manager.kubeconfig /etc/kubernetes/
cp kube-controller-manager.conf /etc/kubernetes/
cp kube-controller-manager.service /usr/lib/systemd/system/
scp  kube-controller-manager*.pem k8s-master2:/etc/kubernetes/ssl/
scp  kube-controller-manager*.pem k8s-master3:/etc/kubernetes/ssl/
scp  kube-controller-manager.kubeconfig kube-controller-manager.conf k8s-master2:/etc/kubernetes/
scp  kube-controller-manager.kubeconfig kube-controller-manager.conf k8s-master3:/etc/kubernetes/
scp  kube-controller-manager.service k8s-master2:/usr/lib/systemd/system/
scp  kube-controller-manager.service k8s-master3:/usr/lib/systemd/system/

2.5.8 部署kube-scheduler

2.5.8.1 创建kube-scheduler证书请求文件

cat > kube-scheduler-csr.json << "EOF"
{
    "CN": "system:kube-scheduler",
    "hosts": [
      "127.0.0.1",
      "192.168.198.144",
      "192.168.198.145",
      "192.168.198.146"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
      {
        "C": "CN",
        "ST": "Beijing",
        "L": "Beijing",
        "O": "system:kube-scheduler",
        "OU": "system"
      }
    ]
}
EOF

2.5.8.2 生成kube-scheduler证书

kube-scheduler.csr kube-scheduler-csr.json kube-scheduler-key.pem kube-scheduler.pem

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-scheduler-csr.json | cfssljson -bare kube-scheduler

2.5.8.3 创建kube-scheduler的kubeconfig

kubectl config set-cluster kubernetes --certificate-authority=ca.pem --embed-certs=true --server=https://192.168.198.100:6443 --kubeconfig=kube-scheduler.kubeconfig
​
kubectl config set-credentials system:kube-scheduler --client-certificate=kube-scheduler.pem --client-key=kube-scheduler-key.pem --embed-certs=true --kubeconfig=kube-scheduler.kubeconfig
​
kubectl config set-context system:kube-scheduler --cluster=kubernetes --user=system:kube-scheduler --kubeconfig=kube-scheduler.kubeconfig
​
kubectl config use-context system:kube-scheduler --kubeconfig=kube-scheduler.kubeconfig

2.5.8.4 创建服务配置文件

cat > kube-scheduler.conf << "EOF"
KUBE_SCHEDULER_OPTS=" \
--kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig \
--leader-elect=true \
--v=2"
EOF

2.5.8.5创建服务启动配置文件

cat > kube-scheduler.service << "EOF"
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes
​
[Service]
EnvironmentFile=-/etc/kubernetes/kube-scheduler.conf
ExecStart=/usr/local/bin/kube-scheduler $KUBE_SCHEDULER_OPTS
Restart=on-failure
RestartSec=5
​
[Install]
WantedBy=multi-user.target
EOF

2.5.8.6 同步文件至集群master节点

cp kube-scheduler*.pem /etc/kubernetes/ssl/
cp kube-scheduler.kubeconfig /etc/kubernetes/
cp kube-scheduler.conf /etc/kubernetes/
cp kube-scheduler.service /usr/lib/systemd/system/
scp  kube-scheduler*.pem k8s-master2:/etc/kubernetes/ssl/
scp  kube-scheduler*.pem k8s-master3:/etc/kubernetes/ssl/
scp  kube-scheduler.kubeconfig kube-scheduler.conf k8s-master2:/etc/kubernetes/
scp  kube-scheduler.kubeconfig kube-scheduler.conf k8s-master3:/etc/kubernetes/
scp  kube-scheduler.service k8s-master2:/usr/lib/systemd/system/
scp  kube-scheduler.service k8s-master3:/usr/lib/systemd/system/

2.5.8.7 启动服务

systemctl daemon-reload
systemctl enable --now kube-scheduler
systemctl status kube-scheduler
​
[root@k8s-master1 kubernetes]# systemctl status kube-scheduler
● kube-scheduler.service - Kubernetes Scheduler
   Loaded: loaded (/usr/lib/systemd/system/kube-scheduler.service; enabled; vendor preset: disabled)
   Active: active (running) since Thu 2024-01-04 16:45:18 CST; 1min 9s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 6131 (kube-scheduler)
   CGroup: /system.slice/kube-scheduler.service
           └─6131 /usr/local/bin/kube-scheduler --kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig --leader-elect=true --v=2
​
Jan 04 16:45:19 k8s-master1 kube-scheduler[6131]: schedulerName: default-scheduler
Jan 04 16:45:19 k8s-master1 kube-scheduler[6131]: >
Jan 04 16:45:19 k8s-master1 kube-scheduler[6131]: I0104 16:45:19.437013    6131 server.go:154] "Starting Kubernetes Scheduler" version="v1.28.0"
Jan 04 16:45:19 k8s-master1 kube-scheduler[6131]: I0104 16:45:19.437027    6131 server.go:156] "Golang settings" GOGC="" GOMAXPROCS="" GOTRACEBACK=""
Jan 04 16:45:19 k8s-master1 kube-scheduler[6131]: I0104 16:45:19.438927    6131 tlsconfig.go:200] "Loaded serving cert" certName="Generated self signed cert" cer...
Jan 04 16:45:19 k8s-master1 kube-scheduler[6131]: I0104 16:45:19.439276    6131 named_certificates.go:53] "Loaded SNI cert" index=0 certName="self-signed loopbac...
Jan 04 16:45:19 k8s-master1 kube-scheduler[6131]: I0104 16:45:19.439311    6131 secure_serving.go:210] Serving securely on [::]:10259
Jan 04 16:45:19 k8s-master1 kube-scheduler[6131]: I0104 16:45:19.439359    6131 tlsconfig.go:240] "Starting DynamicServingCertificateController"
Jan 04 16:45:19 k8s-master1 kube-scheduler[6131]: I0104 16:45:19.540853    6131 leaderelection.go:250] attempting to acquire leader lease kube-system/ku...eduler...
Jan 04 16:45:19 k8s-master1 kube-scheduler[6131]: I0104 16:45:19.555700    6131 leaderelection.go:260] successfully acquired lease kube-system/kube-scheduler
Hint: Some lines were ellipsized, use -l to show in full.

[root@k8s-master1 kubernetes]# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE   ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-0               Healthy   ok

2.5.9 工作节点(worker node)部署

2.5.9.1 容器运行时docker部署

2.5.9.1.1 docker安装
wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
yum -y install docker-ce
systemctl enable --now docker
2.5.9.1.2 修改docker配置
cat << EOF | sudo tee /etc/docker/daemon.json
{
"exec-opts": ["native.cgroupdriver=systemd"]
}
EOF
[root@k8s-node1 docker]# systemctl restart docker
[root@k8s-node1 docker]#
[root@k8s-node1 docker]#
[root@k8s-node1 docker]#
[root@k8s-node1 docker]# docker ps
CONTAINER ID   IMAGE     COMMAND   CREATED   STATUS    PORTS     NAMES
[root@k8s-node1 docker]#
[root@k8s-node1 docker]#
[root@k8s-node1 docker]#
[root@k8s-node1 docker]# docker version
Client: Docker Engine - Community
 Version:           24.0.7
 API version:       1.43
 Go version:        go1.20.10
 Git commit:        afdd53b
 Built:             Thu Oct 26 09:11:35 2023
 OS/Arch:           linux/amd64
 Context:           default
​
Server: Docker Engine - Community
 Engine:
  Version:          24.0.7
  API version:      1.43 (minimum version 1.12)
  Go version:       go1.20.10
  Git commit:       311b9ff
  Built:            Thu Oct 26 09:10:36 2023
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          1.6.26
  GitCommit:        3dd1e886e55dd695541fdcd67420c2888645a495
 runc:
  Version:          1.1.10
  GitCommit:        v1.1.10-0-g18a0cb0
 docker-init:
  Version:          0.19.0
  GitCommit:        de40ad0

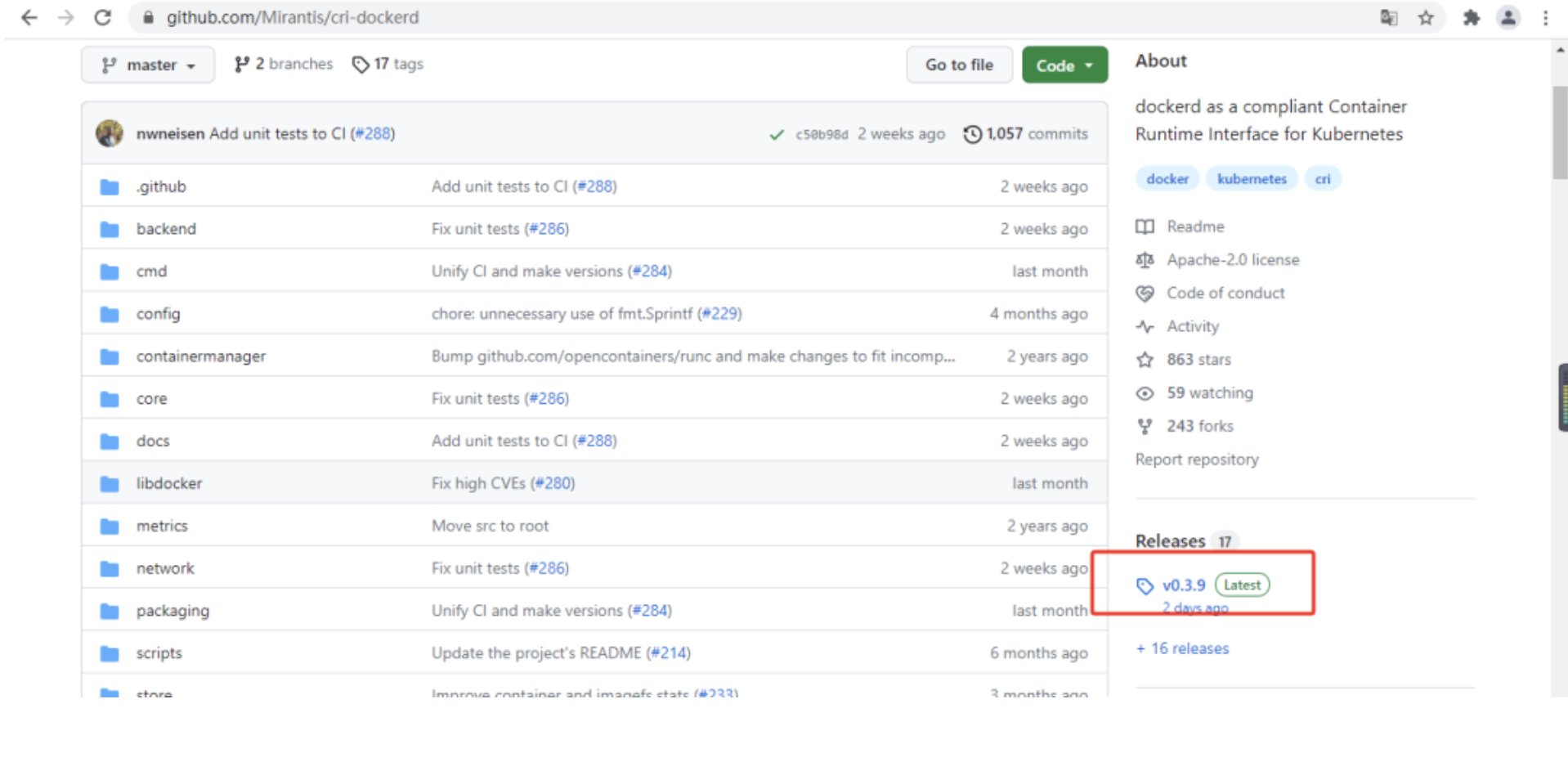

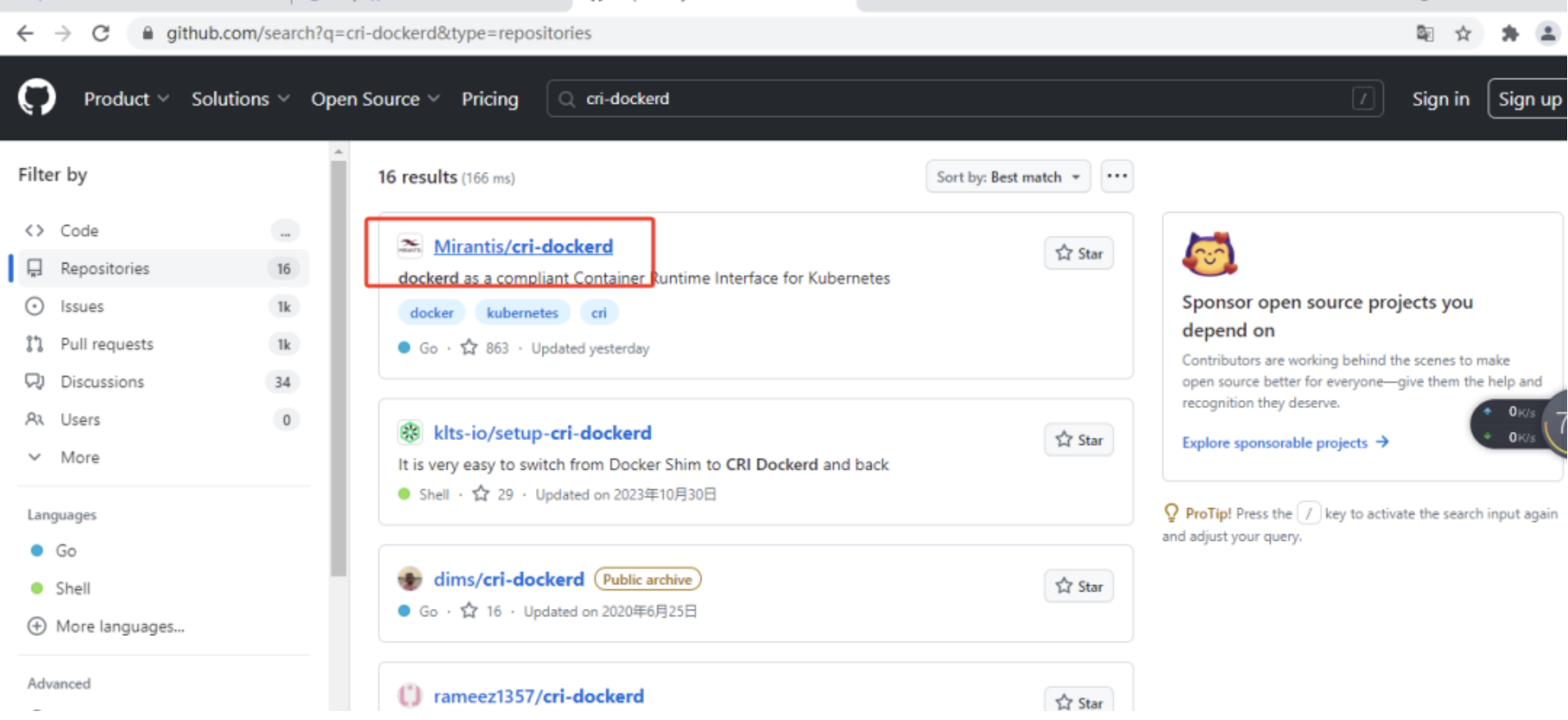

2.5.9.1.2 cri-dockerd安装
cri-dockerd是docker容器的接口



wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.9/cri-dockerd-0.3.9-3.el7.x86_64.rpm
yum install -y cri-dockerd-0.3.9-3.el7.x86_64.rpm

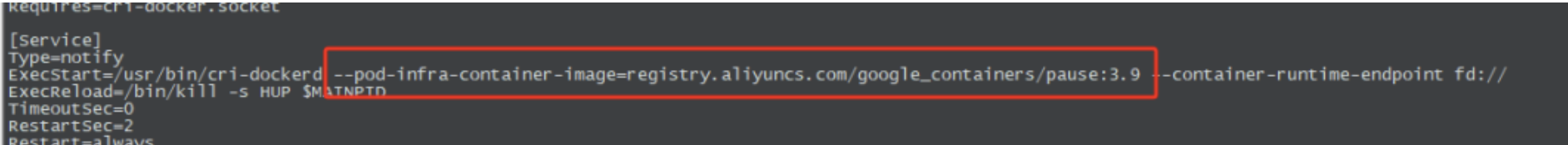

vi /usr/lib/systemd/system/cri-docker.service
​
#修改第10行内容,默认启动的pod镜像太低,指定到3.9版本。使用阿里云的镜像仓库,国内下载镜像会比较快
ExecStart=/usr/bin/cri-dockerd  --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.9 --container-runtime-endpoint fd://


[root@k8s-node2 ~]# systemctl enable --now cri-docker
Created symlink from /etc/systemd/system/multi-user.target.wants/cri-docker.service to /usr/lib/systemd/system/cri-docker.service.
​
[root@k8s-node2 ~]# systemctl status cri-docker
● cri-docker.service - CRI Interface for Docker Application Container Engine
   Loaded: loaded (/usr/lib/systemd/system/cri-docker.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2024-01-05 08:29:57 CST; 3s ago
     Docs: https://docs.mirantis.com
 Main PID: 1821 (cri-dockerd)
    Tasks: 7
   Memory: 13.8M
   CGroup: /system.slice/cri-docker.service
           └─1821 /usr/bin/cri-dockerd --pod-infra-container-image=registry.k8s.io/pause:3.9 --container-runtime-endpoint fd://
​
Jan 05 08:29:57 k8s-node2 cri-dockerd[1821]: time="2024-01-05T08:29:57+08:00" level=info msg="Connecting to docker on the Endpoint unix:///var/run/docker.sock"
Jan 05 08:29:57 k8s-node2 cri-dockerd[1821]: time="2024-01-05T08:29:57+08:00" level=info msg="Start docker client with request timeout 0s"
Jan 05 08:29:57 k8s-node2 cri-dockerd[1821]: time="2024-01-05T08:29:57+08:00" level=info msg="Hairpin mode is set to none"
Jan 05 08:29:57 k8s-node2 cri-dockerd[1821]: time="2024-01-05T08:29:57+08:00" level=info msg="Loaded network plugin cni"
Jan 05 08:29:57 k8s-node2 cri-dockerd[1821]: time="2024-01-05T08:29:57+08:00" level=info msg="Docker cri networking managed by network plugin cni"
Jan 05 08:29:57 k8s-node2 cri-dockerd[1821]: time="2024-01-05T08:29:57+08:00" level=info msg="Setting cgroupDriver systemd"
Jan 05 08:29:57 k8s-node2 cri-dockerd[1821]: time="2024-01-05T08:29:57+08:00" level=info msg="Docker cri received runtime config &RuntimeConfig{NetworkC...idr:,},}"
Jan 05 08:29:57 k8s-node2 cri-dockerd[1821]: time="2024-01-05T08:29:57+08:00" level=info msg="Starting the GRPC backend for the Docker CRI interface."
Jan 05 08:29:57 k8s-node2 cri-dockerd[1821]: time="2024-01-05T08:29:57+08:00" level=info msg="Start cri-dockerd grpc backend"
Jan 05 08:29:57 k8s-node2 systemd[1]: Started CRI Interface for Docker Application Container Engine.
Hint: Some lines were ellipsized, use -l to show in full.
#在run目录下可以看到cri-dockerd.sock ,这个就是后面kubelet调用docker的sock
[root@k8s-node1 run]# ll /run/cri-dockerd.sock
srw-rw---- 1 root docker 0 Jan  5 08:33 /run/cri-dockerd.sock

2.5.9.2 部署kubelet

在k8s-master1上操作

2.5.9.2.1 创建kubelet-bootstrap.kubeconfig
BOOTSTRAP_TOKEN=$(awk -F "," '{print $1}' /etc/kubernetes/token.csv)
​
kubectl config set-cluster kubernetes --certificate-authority=ca.pem --embed-certs=true --server=https://192.168.198.100:6443 --kubeconfig=kubelet-bootstrap.kubeconfig
​
kubectl config set-credentials kubelet-bootstrap --token=${BOOTSTRAP_TOKEN} --kubeconfig=kubelet-bootstrap.kubeconfig
​
kubectl config set-context default --cluster=kubernetes --user=kubelet-bootstrap --kubeconfig=kubelet-bootstrap.kubeconfig
​
kubectl config use-context default --kubeconfig=kubelet-bootstrap.kubeconfig
kubectl create clusterrolebinding cluster-system-anonymous --clusterrole=cluster-admin --user=kubelet-bootstrap
​
kubectl create clusterrolebinding kubelet-bootstrap --clusterrole=system:node-bootstrapper --user=kubelet-bootstrap --kubeconfig=kubelet-bootstrap.kubeconfig
2.5.9.2.2 创建kubelet配置文件

在node节点操作

mkdir -p /etc/kubernetes/ssl

k8s-node1配置文件

cat > /etc/kubernetes/kubelet.json << "EOF"
{
  "kind": "KubeletConfiguration",
  "apiVersion": "kubelet.config.k8s.io/v1beta1",
  "authentication": {
    "x509": {
      "clientCAFile": "/etc/kubernetes/ssl/ca.pem"
    },
    "webhook": {
      "enabled": true,
      "cacheTTL": "2m0s"
    },
    "anonymous": {
      "enabled": false
    }
  },
  "authorization": {
    "mode": "Webhook",
    "webhook": {
      "cacheAuthorizedTTL": "5m0s",
      "cacheUnauthorizedTTL": "30s"
    }
  },
  "address": "192.168.198.147",
  "port": 10250,
  "readOnlyPort": 10255,
  "cgroupDriver": "systemd",
  "hairpinMode": "promiscuous-bridge",
  "serializeImagePulls": false,
  "clusterDomain": "cluster.local.",
  "clusterDNS": ["10.96.0.2"]
}
EOF

k8s-node2配置文件

cat > /etc/kubernetes/kubelet.json << "EOF"
{
  "kind": "KubeletConfiguration",
  "apiVersion": "kubelet.config.k8s.io/v1beta1",
  "authentication": {
    "x509": {
      "clientCAFile": "/etc/kubernetes/ssl/ca.pem"
    },
    "webhook": {
      "enabled": true,
      "cacheTTL": "2m0s"
    },
    "anonymous": {
      "enabled": false
    }
  },
  "authorization": {
    "mode": "Webhook",
    "webhook": {
      "cacheAuthorizedTTL": "5m0s",
      "cacheUnauthorizedTTL": "30s"
    }
  },
  "address": "192.168.198.148",
  "port": 10250,
  "readOnlyPort": 10255,
  "cgroupDriver": "systemd",
  "hairpinMode": "promiscuous-bridge",
  "serializeImagePulls": false,
  "clusterDomain": "cluster.local.",
  "clusterDNS": ["10.96.0.2"]
}
EOF

2.5.9.2.3 创建kubelet服务启动管理文件
#在node节点上创建kubulet的工作目录
[root@k8s-node2 kubernetes]#  mkdir /var/lib/kubelet
cat > /usr/lib/systemd/system/kubelet.service << "EOF"
[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/kubernetes/kubernetes
After=docker.service
Requires=docker.service
​
[Service]
WorkingDirectory=/var/lib/kubelet
ExecStart=/usr/local/bin/kubelet \
  --bootstrap-kubeconfig=/etc/kubernetes/kubelet-bootstrap.kubeconfig \
  --cert-dir=/etc/kubernetes/ssl \
  --kubeconfig=/etc/kubernetes/kubelet.kubeconfig \
  --config=/etc/kubernetes/kubelet.json \
  --container-runtime-endpoint=unix:///run/cri-dockerd.sock \
  --rotate-certificates \
  --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.9 \
  --v=2
Restart=on-failure
RestartSec=5
​
[Install]
WantedBy=multi-user.target
EOF
2.5.9.2.4 同步文件到集群节点

k8s-master1上生成的kubelet-bootstrap.kubeconfig,ca.pem同步到node节点

[root@k8s-master1 k8s-work]# for i in k8s-node1 k8s-node2;do scp kubelet-bootstrap.kubeconfig $i:/etc/kubernetes/;done
kubelet-bootstrap.kubeconfig                                                                                                      100% 2105     1.4MB/s   00:00
kubelet-bootstrap.kubeconfig                                                                                                      100% 2105     1.4MB/s   00:00
[root@k8s-master1 k8s-work]# for i in k8s-node1 k8s-node2;do scp ca.pem $i:/etc/kubernetes/ssl;done
ca.pem                                                                                                                            100% 1310   808.3KB/s   00:00
ca.pem                                                                                                                            100% 1310   716.6KB/s   00:00

把二进制文件分发到node节点

[root@k8s-master1 bin]# for i in k8s-node1 k8s-node2;do scp kubelet kube-scheduler $i:/usr/local/bin/;done
kubelet                                                                                                                           100%  106MB  16.3MB/s   00:06
kube-scheduler                                                                                                                    100%   53MB  12.7MB/s   00:04
kubelet                                                                                                                           100%  106MB  28.6MB/s   00:03
kube-scheduler                                                                                                                    100%   53MB  42.4MB/s   00:01

2.5.9.2.5 启动服务
systemctl daemon-reload
systemctl enable --now kubelet
​
[root@k8s-node1 system]# systemctl status kubelet
● kubelet.service - Kubernetes Kubelet
   Loaded: loaded (/usr/lib/systemd/system/kubelet.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2024-01-05 09:21:20 CST; 3min 40s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 6177 (kubelet)
   CGroup: /system.slice/kubelet.service
           └─6177 /usr/local/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/kubelet-bootstrap.kubeconfig --cert-dir=/etc/kubernetes/ssl --kubeconfig=/etc/kub...
​
Jan 05 09:24:11 k8s-node1 kubelet[6177]: E0105 09:24:11.632795    6177 kubelet.go:2855] "Container runtime network not ready" networkReady="NetworkRead...itialized"
Jan 05 09:24:16 k8s-node1 kubelet[6177]: E0105 09:24:16.633986    6177 kubelet.go:2855] "Container runtime network not ready" networkReady="NetworkRead...itialized"
Jan 05 09:24:21 k8s-node1 kubelet[6177]: E0105 09:24:21.713576    6177 kubelet.go:2855] "Container runtime network not ready" networkReady="NetworkRead...itialized"
Jan 05 09:24:26 k8s-node1 kubelet[6177]: E0105 09:24:26.714288    6177 kubelet.go:2855] "Container runtime network not ready" networkReady="NetworkRead...itialized"
Jan 05 09:24:31 k8s-node1 kubelet[6177]: E0105 09:24:31.715295    6177 kubelet.go:2855] "Container runtime network not ready" networkReady="NetworkRead...itialized"
Jan 05 09:24:36 k8s-node1 kubelet[6177]: E0105 09:24:36.717562    6177 kubelet.go:2855] "Container runtime network not ready" networkReady="NetworkRead...itialized"
Jan 05 09:24:41 k8s-node1 kubelet[6177]: E0105 09:24:41.718346    6177 kubelet.go:2855] "Container runtime network not ready" networkReady="NetworkRead...itialized"
Jan 05 09:24:46 k8s-node1 kubelet[6177]: E0105 09:24:46.719040    6177 kubelet.go:2855] "Container runtime network not ready" networkReady="NetworkRead...itialized"
Jan 05 09:24:51 k8s-node1 kubelet[6177]: E0105 09:24:51.721244    6177 kubelet.go:2855] "Container runtime network not ready" networkReady="NetworkRead...itialized"
Jan 05 09:24:56 k8s-node1 kubelet[6177]: E0105 09:24:56.722712    6177 kubelet.go:2855] "Container runtime network not ready" networkReady="NetworkRead...itialized"
Hint: Some lines were ellipsized, use -l to show in full.
#node节点都已加入集群,没有在master上安装kubelet,master只作为管理节点所以get node看不到master节点
[root@k8s-master1 bin]# kubectl get nodes
NAME        STATUS     ROLES    AGE     VERSION
k8s-node1   NotReady   <none>   3m59s   v1.28.0
k8s-node2   NotReady   <none>   43s     v1.28.0
#启动kubelet后,在/etc/kubunets目录下会自动生成证书配置文件 kubelet.kubeconfig,在ssl中会看到自动签发的证书kubelet-client-2024-01-05-09-21-21.pem、kubelet.crt、kubelet.key
#后续如果节点异常,重新签发证书,需要把ssl里面的证书先删除,否则会看到节点加入集群失败
[root@k8s-node1 kubernetes]# ll
total 12
-rw------- 1 root root 2105 Jan  5 09:09 kubelet-bootstrap.kubeconfig
-rw-r--r-- 1 root root  711 Jan  5 08:52 kubelet.json
-rw------- 1 root root 2234 Jan  5 09:21 kubelet.kubeconfig
drwxr-xr-x 2 root root  138 Jan  5 09:21 ssl
[root@k8s-node1 kubernetes]# vi kubelet.kubeconfig
[root@k8s-node1 kubernetes]# cd ssl
[root@k8s-node1 ssl]# ll
total 16
-rw-r--r-- 1 root root 1310 Jan  5 09:09 ca.pem
-rw------- 1 root root 1224 Jan  5 09:21 kubelet-client-2024-01-05-09-21-21.pem
lrwxrwxrwx 1 root root   58 Jan  5 09:21 kubelet-client-current.pem -> /etc/kubernetes/ssl/kubelet-client-2024-01-05-09-21-21.pem
-rw-r--r-- 1 root root 2275 Jan  5 09:21 kubelet.crt
-rw------- 1 root root 1679 Jan  5 09:21 kubelet.key
[root@k8s-node1 ssl]#

2.5.9.3 部署kube-proxy

2.5.9.3.1 创建kube-proxy证书请求文件

在k8s-master1上生成证书

cat > kube-proxy-csr.json << "EOF"
{
  "CN": "system:kube-proxy",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "kubemsb",
      "OU": "CN"
    }
  ]
}
EOF

2.5.9.3.2 生成证书
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-proxy-csr.json | cfssljson -bare kube-proxy

[root@k8s-master1 k8s-work]# ls kube-proxy*
kube-proxy.csr  kube-proxy-csr.json  kube-proxy-key.pem  kube-proxy.pem

2.5.9.3.3 创建kubeconfig文件

kubectl config set-cluster kubernetes --certificate-authority=ca.pem --embed-certs=true --server=https://192.168.198.100:6443 --kubeconfig=kube-proxy.kubeconfig
​
kubectl config set-credentials kube-proxy --client-certificate=kube-proxy.pem --client-key=kube-proxy-key.pem --embed-certs=true --kubeconfig=kube-proxy.kubeconfig
​
kubectl config set-context default --cluster=kubernetes --user=kube-proxy --kubeconfig=kube-proxy.kubeconfig
​
kubectl config use-context default --kubeconfig=kube-proxy.kubeconfig
2.5.9.3.4 创建服务配置文件

在node节点上创建

cat > /etc/kubernetes/kube-proxy.yaml << "EOF"
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 192.168.198.147
clientConnection:
  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
clusterCIDR: 10.244.0.0/16
healthzBindAddress: 192.168.198.147:10256
kind: KubeProxyConfiguration
metricsBindAddress: 192.168.198.147:10249
mode: "ipvs"
EOF
cat > /etc/kubernetes/kube-proxy.yaml << "EOF"
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 192.168.198.148
clientConnection:
  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
clusterCIDR: 10.244.0.0/16
healthzBindAddress: 192.168.198.148:10256
kind: KubeProxyConfiguration
metricsBindAddress: 192.168.198.148:10249
mode: "ipvs"
EOF
2.5.9.3.5 创建服务启动管理文件

在node节点上创建

#创建proxy的工作目录,和服务启动文件对应
mkdir -p /var/lib/kube-proxy
cat >  /usr/lib/systemd/system/kube-proxy.service << "EOF"
[Unit]
Description=Kubernetes Kube-Proxy Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target
​
[Service]
WorkingDirectory=/var/lib/kube-proxy
ExecStart=/usr/local/bin/kube-proxy \
  --config=/etc/kubernetes/kube-proxy.yaml \
  --v=2
Restart=on-failure
RestartSec=5
LimitNOFILE=65536
​
[Install]
WantedBy=multi-user.target
EOF

2.5.9.3.6 同步文件到集群工作节点主机

[root@k8s-master1 k8s-work]# ls kube-proxy*
kube-proxy.csr  kube-proxy-csr.json  kube-proxy-key.pem  kube-proxy.kubeconfig  kube-proxy.pem
[root@k8s-master1 k8s-work]#
[root@k8s-master1 k8s-work]#
[root@k8s-master1 k8s-work]#
[root@k8s-master1 k8s-work]# for i in k8s-node1 k8s-node2;do scp kube-proxy.kubeconfig $i:/etc/kubernetes/
> done
kube-proxy.kubeconfig                                                                                                             100% 6211     4.4MB/s   00:00
kube-proxy.kubeconfig                                                                                                             100% 6211     4.0MB/s   00:00
[root@k8s-master1 k8s-work]# for i in k8s-node1 k8s-node2;do scp kube-proxy*pem $i:/etc/kubernetes/ssl; done
kube-proxy-key.pem                                                                                                                100% 1679     1.0MB/s   00:00
kube-proxy.pem                                                                                                                    100% 1403   998.3KB/s   00:00
kube-proxy-key.pem                                                                                                                100% 1679     1.4MB/s   00:00
kube-proxy.pem                                                                                                                    100% 1403     1.3MB/s   00:00
[root@k8s-master1 k8s-work]#

2.5.9.3.7 服务启动

systemctl daemon-reload
systemctl enable --now kube-proxy
​
[root@k8s-node1 bin]# systemctl status kube-proxysystemctl status kube-proxy
Unit kube-proxysystemctl.service could not be found.
Unit status.service could not be found.
● kube-proxy.service - Kubernetes Kube-Proxy Server
   Loaded: loaded (/usr/lib/systemd/system/kube-proxy.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2024-01-05 10:53:12 CST; 38s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 11727 (kube-proxy)
    Tasks: 5
   Memory: 17.1M
   CGroup: /system.slice/kube-proxy.service
           └─11727 /usr/local/bin/kube-proxy --config=/etc/kubernetes/kube-proxy.yaml --v=2
​
Jan 05 10:53:12 k8s-node1 kube-proxy[11727]: I0105 10:53:12.551675   11727 shared_informer.go:311] Waiting for caches to sync for endpoint slice config
Jan 05 10:53:12 k8s-node1 kube-proxy[11727]: I0105 10:53:12.552316   11727 config.go:315] "Starting node config controller"
Jan 05 10:53:12 k8s-node1 kube-proxy[11727]: I0105 10:53:12.552333   11727 shared_informer.go:311] Waiting for caches to sync for node config
Jan 05 10:53:12 k8s-node1 kube-proxy[11727]: I0105 10:53:12.569095   11727 proxier.go:925] "Not syncing ipvs rules until Services and Endpoints have bee...m master"
Jan 05 10:53:12 k8s-node1 kube-proxy[11727]: I0105 10:53:12.569432   11727 proxier.go:925] "Not syncing ipvs rules until Services and Endpoints have bee...m master"
Jan 05 10:53:12 k8s-node1 kube-proxy[11727]: I0105 10:53:12.652277   11727 shared_informer.go:318] Caches are synced for endpoint slice config
Jan 05 10:53:12 k8s-node1 kube-proxy[11727]: I0105 10:53:12.652318   11727 proxier.go:925] "Not syncing ipvs rules until Services and Endpoints have bee...m master"
Jan 05 10:53:12 k8s-node1 kube-proxy[11727]: I0105 10:53:12.652328   11727 proxier.go:925] "Not syncing ipvs rules until Services and Endpoints have bee...m master"
Jan 05 10:53:12 k8s-node1 kube-proxy[11727]: I0105 10:53:12.652339   11727 shared_informer.go:318] Caches are synced for service config
Jan 05 10:53:12 k8s-node1 kube-proxy[11727]: I0105 10:53:12.652544   11727 shared_informer.go:318] Caches are synced for node config
Hint: Some lines were ellipsized, use -l to show in full.

2.5.10 网络组件部署 Calico

2.5.10.1 下载

在calico的官网进行下载对应的yaml文件,在我们master节点上创建

**https://docs.tigera.io/calico/latest/about**
**查询版本,下载支持目前安装的k8s版本的calico,目前安装的k8s版本为v1.28**


选择calico v3.26版本

#把对应命令复制过来,不需要执行
kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v3.26.4/manifests/tigera-operator.yaml
kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v3.26.4/manifests/custom-resources.yaml
​
​
#先使用wget下载后,检查文件正常后在进行部署
wget https://raw.githubusercontent.com/projectcalico/calico/v3.26.4/manifests/tigera-operator.yaml
wget https://raw.githubusercontent.com/projectcalico/calico/v3.26.4/manifests/custom-resources.yaml
​
[root@k8s-master1 ~]# wget https://raw.githubusercontent.com/projectcalico/calico/v3.26.4/manifests/custom-resources.yaml
--2024-01-05 13:49:20--  https://raw.githubusercontent.com/projectcalico/calico/v3.26.4/manifests/custom-resources.yaml
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.108.133, 185.199.110.133, 185.199.109.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.108.133|:443... failed: Connection refused.
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.110.133|:443... failed: Connection refused.
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.109.133|:443... failed: Connection refused.
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.111.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 824 [text/plain]
Saving to: ‘custom-resources.yaml’
​
100%[==========================================================================================================================>] 824         --.-K/s   in 0s
​
2024-01-05 13:50:26 (63.4 MB/s) - ‘custom-resources.yaml’ saved [824/824]
​
[root@k8s-master1 ~]# ll *yaml
-rw-r--r-- 1 root root     824 Jan  5 13:50 custom-resources.yaml
-rw-r--r-- 1 root root 1475581 Jan  5 13:50 tigera-operator.yaml

2.5.10.2 修改文件

#custom-resources.yaml文件默认的pod网络为192.168.0.0/16,我们定义的pod网络为10.244.0.0/16,需要修改后再执行
     cidr: 192.168.0.0/16  修改成  cidr: 10.244.0.0/16

2.5.10.3 应用文件

创建要使用create 命令,不要使用apply -f命令,会报错。

#执行tigera-operator.yaml
[root@k8s-master1 ~]# kubectl create -f tigera-operator.yaml
namespace/tigera-operator created
customresourcedefinition.apiextensions.k8s.io/bgpconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgpfilters.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgppeers.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/blockaffinities.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/caliconodestatuses.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/clusterinformations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/felixconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworksets.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/hostendpoints.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamblocks.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamconfigs.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamhandles.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ippools.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipreservations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/kubecontrollersconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networksets.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/apiservers.operator.tigera.io created
customresourcedefinition.apiextensions.k8s.io/imagesets.operator.tigera.io created
customresourcedefinition.apiextensions.k8s.io/installations.operator.tigera.io created
customresourcedefinition.apiextensions.k8s.io/tigerastatuses.operator.tigera.io created
serviceaccount/tigera-operator created
clusterrole.rbac.authorization.k8s.io/tigera-operator created
clusterrolebinding.rbac.authorization.k8s.io/tigera-operator created
deployment.apps/tigera-operator created
[root@k8s-master1 ~]#
[root@k8s-master1 ~]#
[root@k8s-master1 ~]#
[root@k8s-master1 ~]#
[root@k8s-master1 ~]# kubectl get ns
NAME              STATUS   AGE
default           Active   23h
kube-node-lease   Active   23h
kube-public       Active   23h
kube-system       Active   23h
tigera-operator   Active   18s
[root@k8s-master1 ~]# kubectl get pod -n tigera-operator
NAME                               READY   STATUS    RESTARTS   AGE
tigera-operator-7f8cd97876-tdjlq   1/1     Running   0          23s

tigera-operator中pod都running后,执行 kubectl create -f custom-resources.yaml

[root@k8s-master1 ~]# kubectl create -f custom-resources.yaml
installation.operator.tigera.io/default created
apiserver.operator.tigera.io/default created
[root@k8s-master1 ~]#
[root@k8s-master1 ~]#
[root@k8s-master1 ~]#
[root@k8s-master1 ~]#
[root@k8s-master1 ~]#
You have new mail in /var/spool/mail/root
[root@k8s-master1 ~]#
[root@k8s-master1 ~]#
[root@k8s-master1 ~]# kubectl get ns
NAME              STATUS   AGE
calico-system     Active   52s
default           Active   23h
kube-node-lease   Active   23h
kube-public       Active   23h
kube-system       Active   23h
tigera-operator   Active   95s
[root@k8s-master1 ~]# kubectl get pod -n calico-system
NAME                                       READY   STATUS    RESTARTS   AGE
calico-kube-controllers-798969c8c4-dbnct   1/1     Running   0          4m31s
calico-node-742hh                          1/1     Running   0          4m32s
calico-node-c5dcj                          1/1     Running   0          4m32s
calico-typha-5f789cd78d-zdklj              1/1     Running   0          4m33s
csi-node-driver-86xh4                      2/2     Running   0          4m32s
csi-node-driver-b6czj                      2/2     Running   0          4m32s
[root@k8s-master1 ~]# kubectl get nodes
NAME        STATUS   ROLES    AGE     VERSION
k8s-node1   Ready    <none>   4h43m   v1.28.0
k8s-node2   Ready    <none>   4h39m   v1.28.0

2.5.10 部署CoreDNS

cat >  coredns.yaml << "EOF"
apiVersion: v1
kind: ServiceAccount
metadata:
  name: coredns
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:coredns
rules:
  - apiGroups:
    - ""
    resources:
    - endpoints
    - services
    - pods
    - namespaces
    verbs:
    - list
    - watch
  - apiGroups:
    - discovery.k8s.io
    resources:
    - endpointslices
    verbs:
    - list
    - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:coredns
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:coredns
subjects:
- kind: ServiceAccount
  name: coredns
  namespace: kube-system
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: coredns
  namespace: kube-system
data:
  Corefile: |
    .:53 {
        errors
        health {
          lameduck 5s
        }
        ready
        kubernetes cluster.local  in-addr.arpa ip6.arpa {
          fallthrough in-addr.arpa ip6.arpa
        }
        prometheus :9153
        forward . /etc/resolv.conf {
          max_concurrent 1000
        }
        cache 30
        loop
        reload
        loadbalance
    }
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: coredns
  namespace: kube-system
  labels:
    k8s-app: kube-dns
    kubernetes.io/name: "CoreDNS"
spec:
  # replicas: not specified here:
  # 1. Default is 1.
  # 2. Will be tuned in real time if DNS horizontal auto-scaling is turned on.
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
  selector:
    matchLabels:
      k8s-app: kube-dns
  template:
    metadata:
      labels:
        k8s-app: kube-dns
    spec:
      priorityClassName: system-cluster-critical
      serviceAccountName: coredns
      tolerations:
        - key: "CriticalAddonsOnly"
          operator: "Exists"
      nodeSelector:
        kubernetes.io/os: linux
      affinity:
         podAntiAffinity:
           preferredDuringSchedulingIgnoredDuringExecution:
           - weight: 100
             podAffinityTerm:
               labelSelector:
                 matchExpressions:
                   - key: k8s-app
                     operator: In
                     values: ["kube-dns"]
               topologyKey: kubernetes.io/hostname
      containers:
      - name: coredns
        image: coredns/coredns:1.10.1
        imagePullPolicy: IfNotPresent
        resources:
          limits:
            memory: 170Mi
          requests:
            cpu: 100m
            memory: 70Mi
        args: [ "-conf", "/etc/coredns/Corefile" ]
        volumeMounts:
        - name: config-volume
          mountPath: /etc/coredns
          readOnly: true
        ports:
        - containerPort: 53
          name: dns
          protocol: UDP
        - containerPort: 53
          name: dns-tcp
          protocol: TCP
        - containerPort: 9153
          name: metrics
          protocol: TCP
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            add:
            - NET_BIND_SERVICE
            drop:
            - all
          readOnlyRootFilesystem: true
        livenessProbe:
          httpGet:
            path: /health
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 60
          timeoutSeconds: 5
          successThreshold: 1
          failureThreshold: 5
        readinessProbe:
          httpGet:
            path: /ready
            port: 8181
            scheme: HTTP
      dnsPolicy: Default
      volumes:
        - name: config-volume
          configMap:
            name: coredns
            items:
            - key: Corefile
              path: Corefile
---
apiVersion: v1
kind: Service
metadata:
  name: kube-dns
  namespace: kube-system
  annotations:
    prometheus.io/port: "9153"
    prometheus.io/scrape: "true"
  labels:
    k8s-app: kube-dns
    kubernetes.io/cluster-service: "true"
    kubernetes.io/name: "CoreDNS"
spec:
  selector:
    k8s-app: kube-dns
  clusterIP: 10.96.0.2
  ports:
  - name: dns
    port: 53
    protocol: UDP
  - name: dns-tcp
    port: 53
    protocol: TCP
  - name: metrics
    port: 9153
    protocol: TCP

EOF
[root@k8s-master1 ~]# kubectl apply -f coredns.yaml
serviceaccount/coredns created
clusterrole.rbac.authorization.k8s.io/system:coredns created
clusterrolebinding.rbac.authorization.k8s.io/system:coredns created
configmap/coredns created
deployment.apps/coredns created
service/kube-dns created
[root@k8s-master1 ~]# kubectl get pod -n kube-system -o wide
NAME                       READY   STATUS    RESTARTS   AGE   IP               NODE        NOMINATED NODE   READINESS GATES
coredns-758895f87b-phqsp   1/1     Running   0          98s   10.244.169.131   k8s-node2   <none>           <none>
#验证dns域名解析是否正常
[root@k8s-node1 kubernetes]#  dig -t a www.baidu.com @10.96.0.2
​
; <<>> DiG 9.11.4-P2-RedHat-9.11.4-26.P2.el7_9.15 <<>> -t a www.baidu.com @10.96.0.2
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 54240
;; flags: qr rd ra; QUERY: 1, ANSWER: 3, AUTHORITY: 0, ADDITIONAL: 1
​
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;www.baidu.com.                 IN      A
​
;; ANSWER SECTION:
www.baidu.com.          12      IN      CNAME   www.a.shifen.com.
www.a.shifen.com.       12      IN      CNAME   www.wshifen.com.
www.wshifen.com.        12      IN      A       103.235.46.40
​
;; Query time: 74 msec
;; SERVER: 10.96.0.2#53(10.96.0.2)
;; WHEN: Fri Jan 05 15:48:18 CST 2024
;; MSG SIZE  rcvd: 161

2.5.11 部署应用验证

kubectl create ns my-nginx
​
kubectl create deploy  my-nginx --image=nginx:1.23.0 -n my-nginx --dry-run -o yaml >> my-nginx.yaml
​
kubectl apply -f my-nginx.yaml
kubectl expose deployment my-nginx --port=80 --target-port=80 --type=NodePort -n my-nginx --dry-run -o yaml >> nginx-svc.yaml
​
kubectl apply -f nginx-svc.yaml
[root@k8s-master1 ~]# kubectl apply -f nginx-svc.yaml
service/my-nginx-svc created
[root@k8s-master1 ~]#
[root@k8s-master1 ~]#
[root@k8s-master1 ~]# kubectl get all -n my-nginx
NAME                            READY   STATUS    RESTARTS   AGE
pod/my-nginx-556b5ccbb8-d4wcl   1/1     Running   0          24m
​
NAME                   TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
service/my-nginx-svc   NodePort   10.96.202.184   <none>        80:32724/TCP   8s
​
NAME                       READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/my-nginx   1/1     1            1           24m
​
NAME                                  DESIRED   CURRENT   READY   AGE
replicaset.apps/my-nginx-556b5ccbb8   1         1         1
